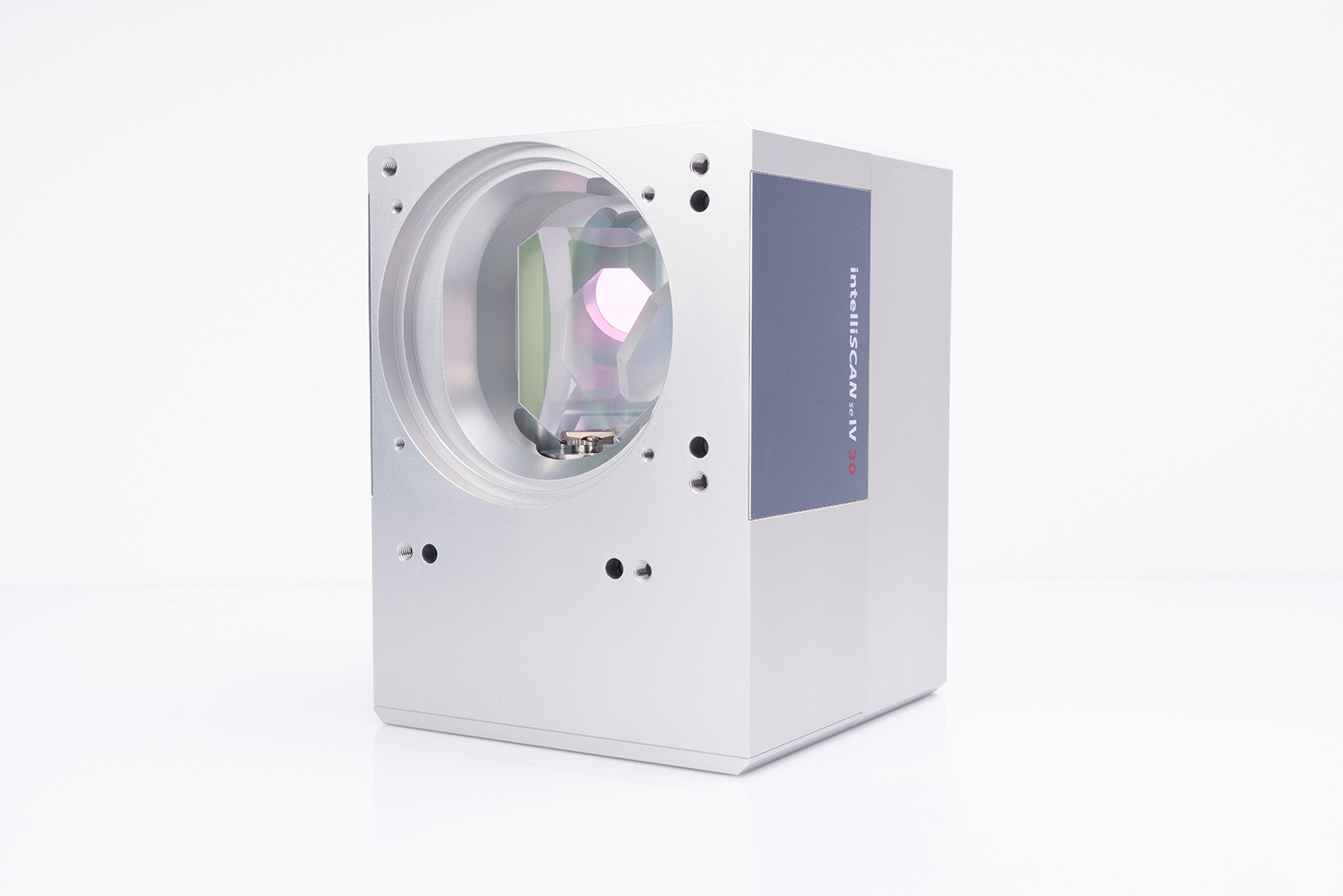

Precision and Stability for Additive Manufacturing

The intelliSCANse IV 30 is a high-performance digital scanner with a 30 mm aperture, specifically developed for demanding industrial laser processes and applications in additive manufacturing.

Thanks to digital encoder technology in the galvanometer scanners, it offers maximum positioning accuracy and long-term stability. This supports reliable manufacturing of complex geometries especially during long lasting build jobs.

The intelliSCANse IV 30 is highly dynamic. Users can choose between classic tracking error control and SCANahead control, which enables significant speed advantages, especially in hatching applications.
In combination with SCANLAB’s SCANmotionControl software, precise, dynamics-optimized trajectory planning is made possible. This is ideal for complex AM processes where exact energy input and high process speeds are required.

With IP66 protection class, integrated water cooling, and an especially compact design, the intelliSCANse IV 30 is perfectly suited for use in demanding industrial environments.

Product Key Features:

• Galvanometer scanner with digital encoders for maximum positioning accuracy and long-term stability
• Maximum dynamics through SCANahead technology
• Ready for SCANmotionControl
• Optical design suitable for high laser powers and the use of various laser beam profiles (Gaussian, ring mode, etc.)
• Dust- and water-protected housing (IP66)
• Integrated water cooling for industrial operating conditions

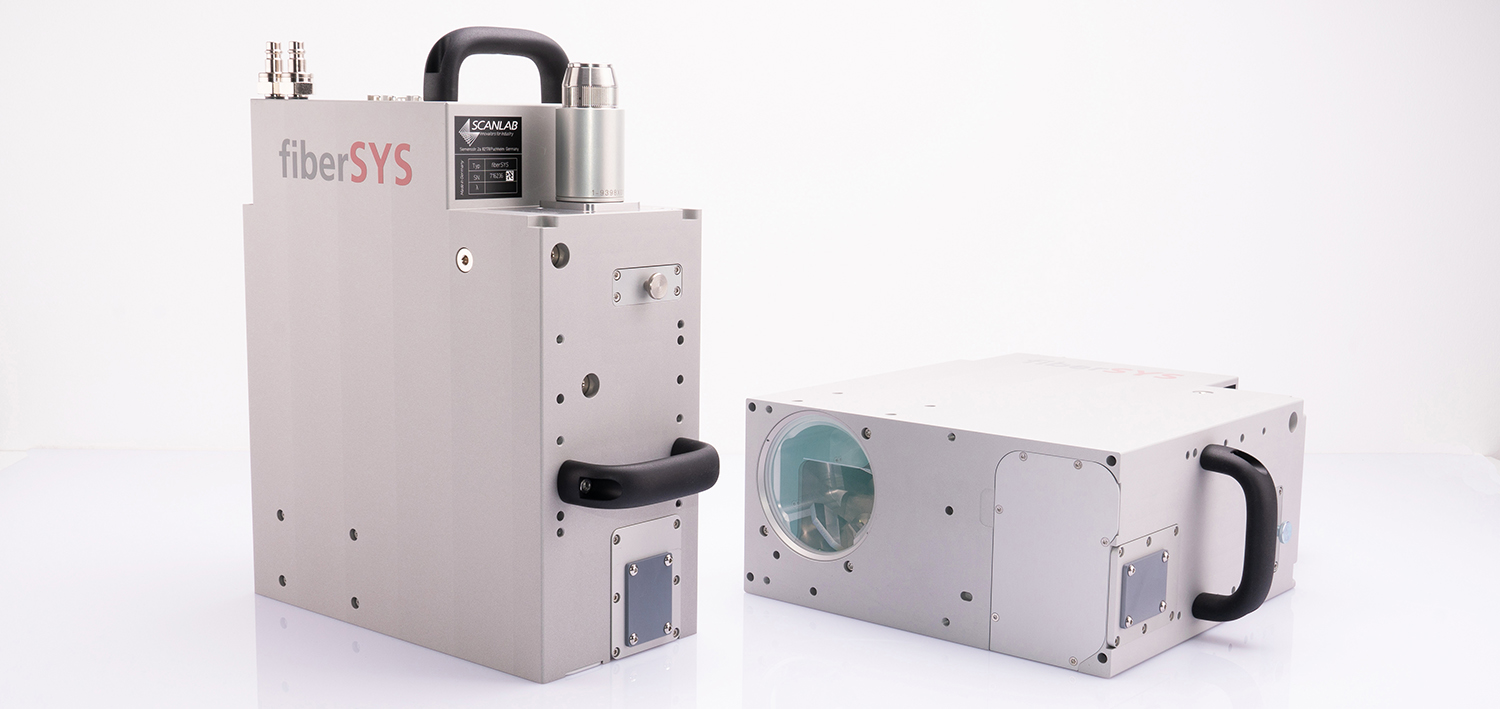

Compact Scan Head with Integrated Z Axis for Additive Manufacturing

As a slim 3D scanning system, the fiberSYS is ideal for multi-head systems. It is designed for a power of up to 1 kW and optimized for single-mode lasers. The low- drift XY scan modul and the fast z axis guarantee precise and long-term stable processes. The compact and sealed housing with a direct fiber connection can be easily integrated into machine concepts.

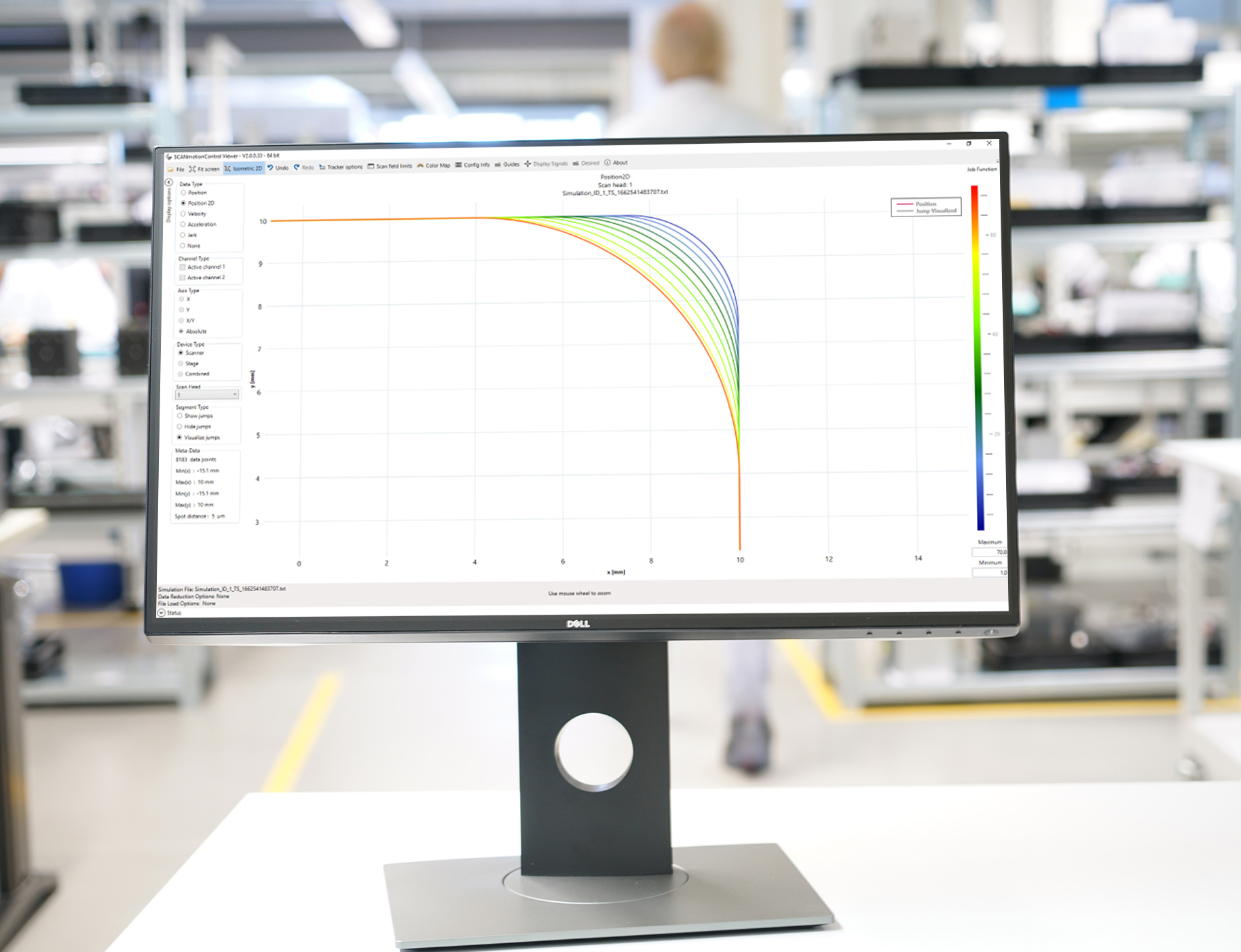

Efficient Developement and Optimal Control of Laser Processes

• Highest precision and exact laser control by trajectory
  planning
• Shortest process times through optimal use of scanner
  dynamics and laser power
• Simple job planning and simulation:
  ‘What you see is what you get‘
• Multi-head and multi-instance capability (up to four
  scanners)
• Advanced Spot Distance Control (SDC) function
