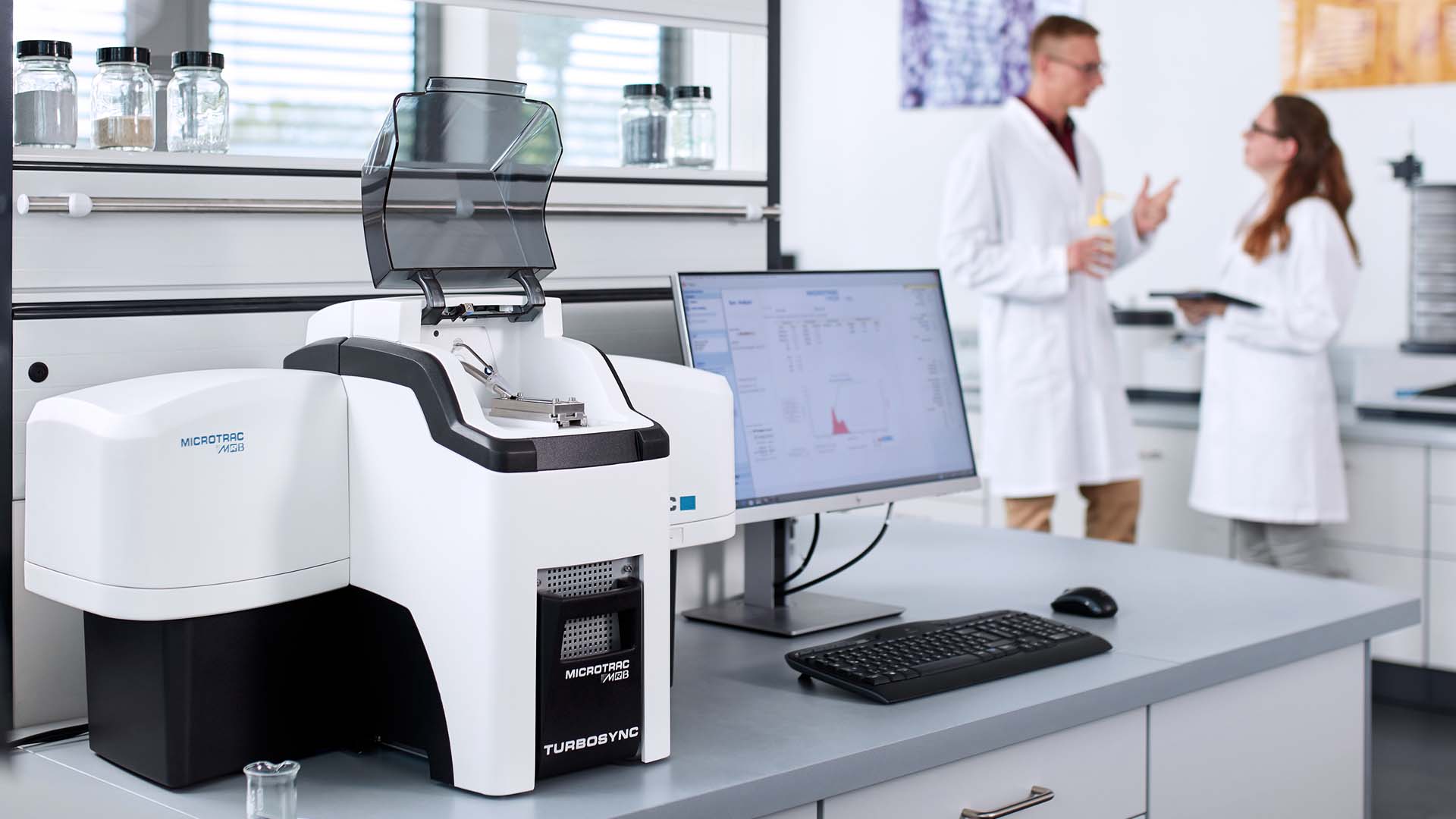

SYNC – A New Dimension in Particle Analysis
The Microtrac MRB SYNC Analyzer provides traditional users of laser diffraction technology with exciting new capabilities to characterize their materials. The proven tri-laser technology provides accurate and repeatable laser diffraction information from light detected over 163 degrees of angular scatter. When combined with state-of-the-art camera technology capturing images of the particle stream at the same time, the SYNC offers not only size data but also additional information about the shape of the materials and the quality of the dispersion.

The patented synchronous measurement technology of the SYNC allows users to make both a laser diffraction measurement and image analysis on a single sample, in the same sample cell at the same time: One sample, one optical bench, one flow path, one sample cell, one integrated GUI, one analysis.

This makes the SYNC ideally suited for both routine QC and research applications; it provides valuable information to researchers as they develop new materials and processes. The powerful software interface offers both particle size distribution information as well as a multitude of morphological parameters. The patented BLEND routine allows users to examine materials over a wide size range from 0.01 microns to 4000 microns.

Perfect Characterization of fine powders

The CAMSIZER X2 is a powerful, extremely versatile particle size and shape analyzer with a wide measuring range that combines state-of-the-art camera technology with flexible dispersion options. Based on the principle of Dynamic Image Analysis (ISO 13322-2), the CAMSIZER X2 provides precise particle size and shape information of powders, granules and suspensions in a measuring range from 0.8 μm to 8 mm.

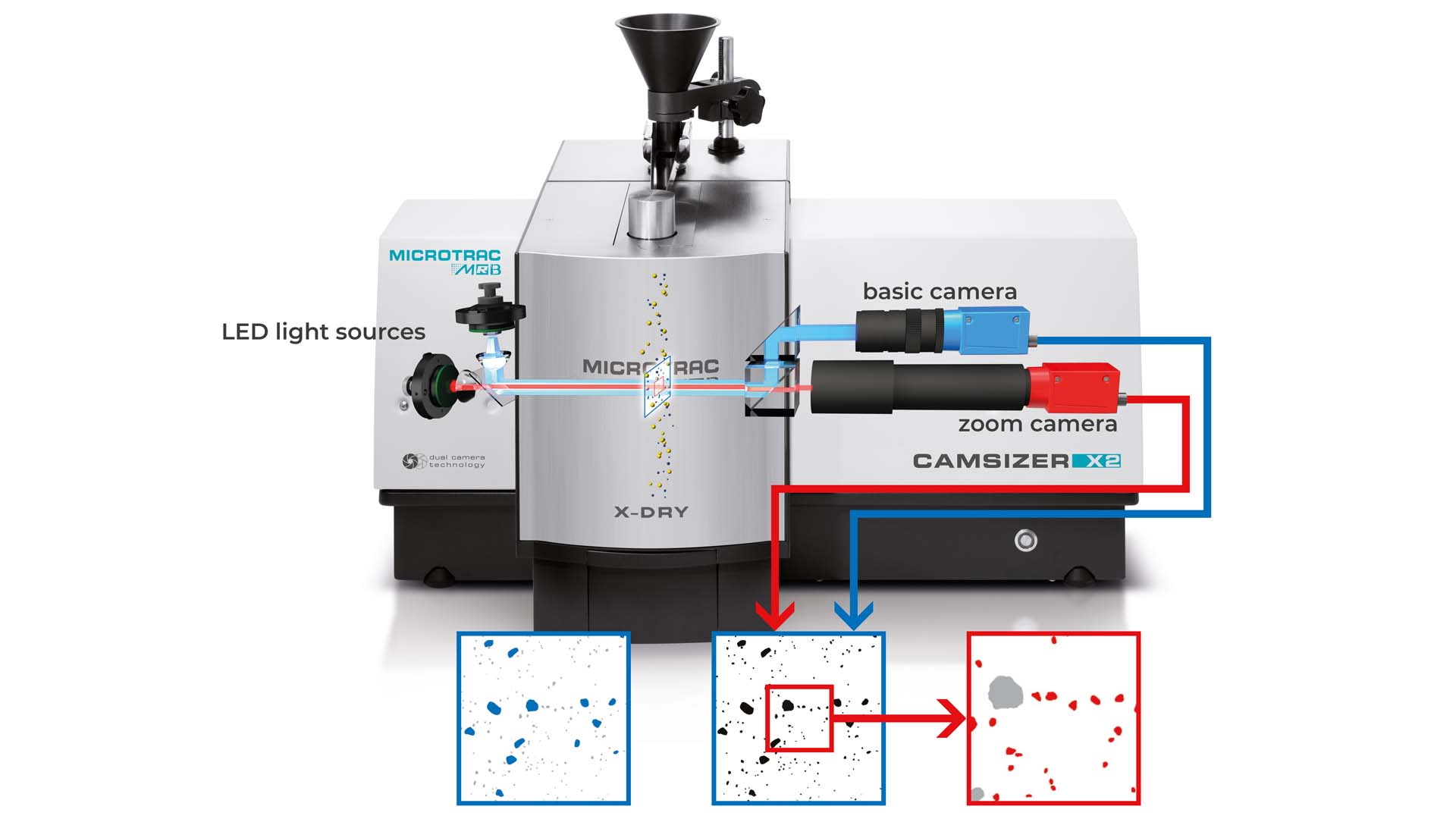

The CAMSIZER X2 produces a particle flow which is characterized by an optical system with high resolution. An ultrabright LED stroboscopic light sources and two high-resolution digital cameras achieve a frame rate of more than 300 images per second which are evaluated in real time by a powerful software. Thus, the CAMSIZER X2 captures the images of hundreds of thousands to several millions of particles with highest accuracy within only 1 to 3 minutes.

The CAMSIZER X2 provides a wide selection of particle information which allows for comprehensive and reliable characterization of the sample material. It is suitable for use in R&D as well as for routine tasks in quality control.

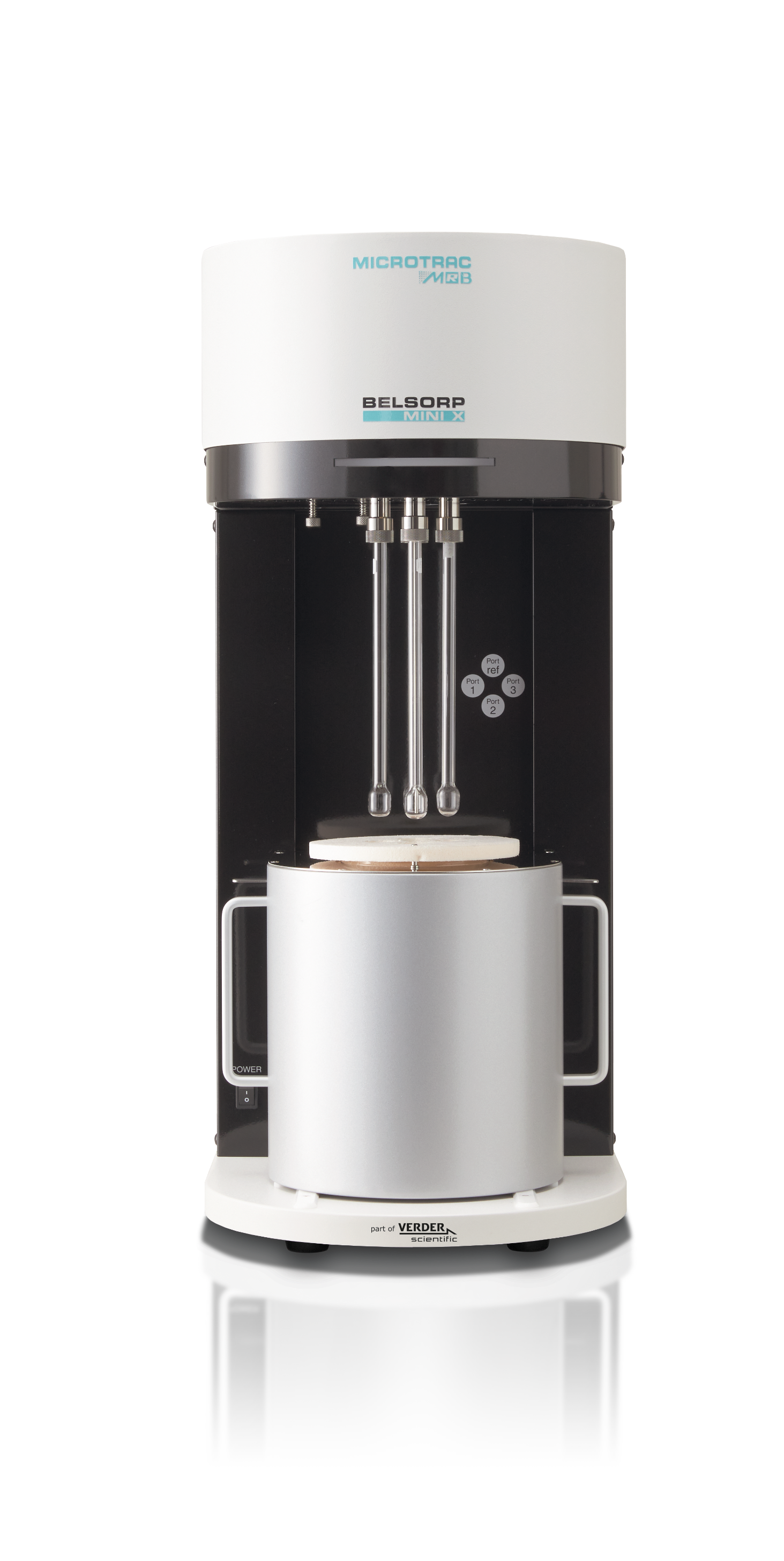

Microtrac MRB’s BELSORP MINI X provides simple, fast and highly accurate characterization of porous materials. It is equipped with up to 4 sample measurement ports and new high-throughput functions including multi-device control.

The BELSORP MINI X is designed to measure specific surface area, pore size distribution and pore volume with extreme accuracy. Equipped with dedicated pressure sensors on each sample measuring port and a specific port for saturated vapor pressure, it enables completely independent simultaneous measurements.
