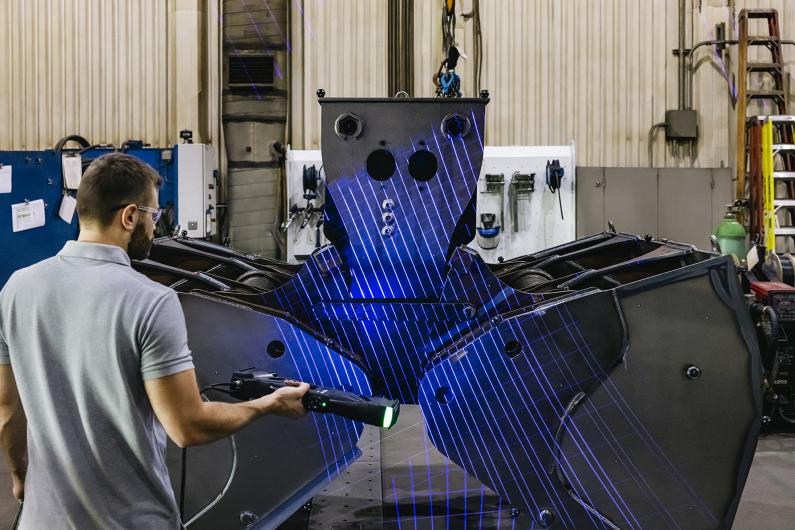

HandySCAN 3D|MAX Series

Complex and inefficient workflows make creating accurate CAD models from scan data difficult. As
designers and engineers must work around limited mesh-handling functionalities in CAD
software, extracting information from scan data is time-consuming and labor-intensive.

To overcome these challenges, Creaform developed Scan-to-CAD software module. Scan-to-CAD is a post-processing software module designed to simplify feature extraction and CAD modeling from scan data.

Powered by advanced mesh algorithms, it offers flexible alignment, optimized mesh editing, and a robust toolset for automatic feature creation.

Scan-to-CAD transfers extracted geometry directly into any CAD platform. Parametric transfer is even made easier with SOLIDWORKS, giving designers a seamless path from scan to CAD in just a few clicks—boosting both efficiency and capability.

Satisfied with its performance and comprehensive toolset, thousands of professionals have endorsed Scan-to-CAD as their go-to complement to CAD software — enabling the most streamlined workflow from scan to mesh to CAD.

Creaform.OS™ is a powerful, integrated operating software that provides the best 3D measurement experience across all Creaform systems.

Featuring an intuitive interface, user-friendly tools, embedded content, and learning tutorials, the platform is designed to streamline onboarding for new users and overcome a lack of experience, ensuring they can fully leverage the capabilities of their 3D scanners and optical CMMs.

Creaform Metrology Suite™ provides a comprehensive portfolio of application software modules designed for any metrology task.

• Scan-to-CAD
The most intuitive reverse engineering toolkit for transferring data extracted from 3D scans to any CAD platform.

• Inspection
Comprehensive and powerful software designed for efficient and accurate dimensional inspections.

• Automation
The most user-friendly and integrated programming platform for deploying automated quality control solutions.

• Dynamic Tracking
Enables simultaneous position and orientation of multiple objects in space and time.

The Go!SCAN 3D™ is our fastest, user-friendly handheld 3D scanner.

A powerful tool during the product development phase, the Go!SCAN 3D quickly measures any complex surface making it possible to «get it right» the first time.

With its seamless integration to your 3D modelling software and your product life cycle management workflow, it will greatly improve product development, foster innovation and shorten time to market.

Designed to scan any object without need for a set-up, it offers flawless texture and geometry acquisition as well as impressive details in a rich color palette.

Just go… and scan!

The HandySCAN EVO|Elite™ delivers a host of cutting-edge features, each designed to provide tangible benefits, enhancing precision, efficiency, and ease of use for professionals in demanding 3D scanning applications:

• Real-time visualization, quick access to parameters, and processing options directly on the scanner’s 4.3-inch touch screen display, eliminating the back and forth to the computer.
• Augmented reality capabilities and straightforward documentation of the inspection process through photography, enabled by the addition of a high-resolution 12 MP camera.
• Easy onboarding and essential tools at your fingertips, including 3D manipulation (mesh) and advanced scanning features such as high-resolution mode and clipping options, supported by the scanner’s integrated and user-friendly GUI.
• Streamlined repetitive inspections and enhanced quality control processes enabled by the new auto-alignment feature.
• An accuracy of 0.020 mm and a volumetric accuracy of 0.020 mm + 0.015 mm/m powered by 46 blue laser lines (+1 extra line).
• The most accurate 3D measurements wherever you need them through the use of a 350 mm scale bar.

The HandySCAN 3D|PRO Series, bundled with Scan-to-CAD Pro, combines advanced technology with user-friendly design to optimize product development processes and deliver reliable results. Below are the standout features that make it a preferred choice for professionals across industries, when looking for the fastest path to reverse engineering.

• High Accuracy & Resolution: Features 23 blue laser lines for detailed, high-quality scans, capable of handling complex shapes and difficult surfaces with a proven and trusted accuracy of 0.030 mm, ensuring rapid 3D data acquisition.
• Value for money: With a hardware and software combo starting at US$24,990, this professional portable 3D scanner provides a rapid return on investment (ROI) due to its versatility and time-saving features.
• Integrated software: Includes the intuitive Scan-to-CAD Pro software module, optimized for 3D scan data and ideal for reverse engineering and product development, providing the fastest time from scans to CAD, through a versatile toolbox including powerful mesh extraction, sketching and modeling tools.
• Simplicity: This integrated solution is designed to enhance user experience, allowing individuals to operate it effortlessly through its intuitive multi-function LCD touchscreen and haptic feedback via vibration.
• Time savings: Enables a significant reduction in iterations within the product design and development cycle for increased efficiency, thereby decreasing product development time, accelerating time-to-market and empowering quicker revenue generation.
• Versatility: Capable of measuring and analyzing any component, it can be used to design new parts, adapt or maintain old parts, create 3D models, look for innovative ways to surpass competition, support sales in business development, and better manage deadlines.
