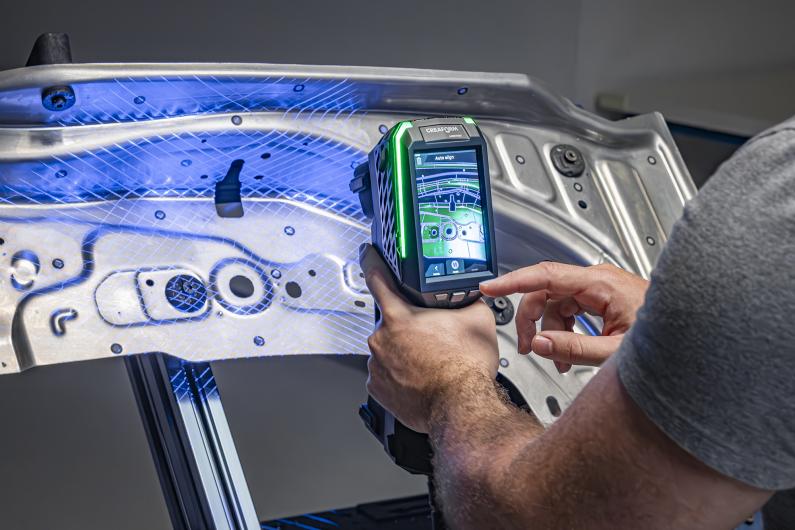

HandySCAN 3D|EVO Series™

Complex and inefficient workflows make creating accurate CAD models from scan data difficult. As
designers and engineers must work around limited mesh-handling functionalities in CAD
software, extracting information from scan data is time-consuming and labor-intensive.

To overcome these challenges, Creaform developed Scan-to-CAD software module. Scan-to-CAD is a post-processing software module designed to simplify feature extraction and CAD modeling from scan data.

Powered by advanced mesh algorithms, it offers flexible alignment, optimized mesh editing, and a robust toolset for automatic feature creation.

Scan-to-CAD transfers extracted geometry directly into any CAD platform. Parametric transfer is even made easier with SOLIDWORKS, giving designers a seamless path from scan to CAD in just a few clicks—boosting both efficiency and capability.

Satisfied with its performance and comprehensive toolset, thousands of professionals have endorsed Scan-to-CAD as their go-to complement to CAD software — enabling the most streamlined workflow from scan to mesh to CAD.

Creaform.OS™ is a powerful, integrated operating software that provides the best 3D measurement experience across all Creaform systems.

Featuring an intuitive interface, user-friendly tools, embedded content, and learning tutorials, the platform is designed to streamline onboarding for new users and overcome a lack of experience, ensuring they can fully leverage the capabilities of their 3D scanners and optical CMMs.

Creaform Metrology Suite™ provides a comprehensive portfolio of application software modules designed for any metrology task.

• Scan-to-CAD
The most intuitive reverse engineering toolkit for transferring data extracted from 3D scans to any CAD platform.

• Inspection
Comprehensive and powerful software designed for efficient and accurate dimensional inspections.

• Automation
The most user-friendly and integrated programming platform for deploying automated quality control solutions.

• Dynamic Tracking
Enables simultaneous position and orientation of multiple objects in space and time.

The Go!SCAN 3D™ is our fastest, user-friendly handheld 3D scanner.

A powerful tool during the product development phase, the Go!SCAN 3D quickly measures any complex surface making it possible to «get it right» the first time.

With its seamless integration to your 3D modelling software and your product life cycle management workflow, it will greatly improve product development, foster innovation and shorten time to market.

Designed to scan any object without need for a set-up, it offers flawless texture and geometry acquisition as well as impressive details in a rich color palette.

Just go… and scan!

The HandySCAN 3D|PRO Series, bundled with Scan-to-CAD Pro, combines advanced technology with user-friendly design to optimize product development processes and deliver reliable results. Below are the standout features that make it a preferred choice for professionals across industries, when looking for the fastest path to reverse engineering.

• High Accuracy & Resolution: Features 23 blue laser lines for detailed, high-quality scans, capable of handling complex shapes and difficult surfaces with a proven and trusted accuracy of 0.030 mm, ensuring rapid 3D data acquisition.
• Value for money: With a hardware and software combo starting at US$24,990, this professional portable 3D scanner provides a rapid return on investment (ROI) due to its versatility and time-saving features.
• Integrated software: Includes the intuitive Scan-to-CAD Pro software module, optimized for 3D scan data and ideal for reverse engineering and product development, providing the fastest time from scans to CAD, through a versatile toolbox including powerful mesh extraction, sketching and modeling tools.
• Simplicity: This integrated solution is designed to enhance user experience, allowing individuals to operate it effortlessly through its intuitive multi-function LCD touchscreen and haptic feedback via vibration.
• Time savings: Enables a significant reduction in iterations within the product design and development cycle for increased efficiency, thereby decreasing product development time, accelerating time-to-market and empowering quicker revenue generation.
• Versatility: Capable of measuring and analyzing any component, it can be used to design new parts, adapt or maintain old parts, create 3D models, look for innovative ways to surpass competition, support sales in business development, and better manage deadlines.

The MAX Series’ sophisticated algorithms leverage the power of artificial intelligence, providing unparalleled tracking for the flawless 3D scanning of large and complex parts during dimensional inspections, product development, and reverse engineering.

The MAX Series has all the attributes that made the HandySCAN 3D line-up the reference in the industry: true portability, blue laser technology, integrated photogrammetry, live meshing, and more. It also offers new key features, guaranteed to simplify any scanning process:

• Flex Volume: This enables the user to scan with remarkable quality at a short standoff distance and measure large parts at very high speed from a longer standoff distance.

• Smart Surface Algorithm: Its sophisticated image processing, combined with artificial intelligence, optimizes surface measurements for unparalleled tracking, better performance, better readings of difficult, contrasted finishes, and a simpler scanning process.

• Real-Time Calibration: The MAX Series integrates the calibration step directly into the scanning workflow, performing it automatically and seamlessly.
