POSTPRO SF - CHEMICAL VAPOR SMOOTHING
POSTPRO SF - CHEMICAL VAPOR SMOOTHING
Description
AMT's patented PostPro SF50 and SF100 are fully automated chemical vapor smoothing systems delivering end-use parts for production.
How it works:
Additive manufactured parts need to be surface finished after they have been printed, to achieve the same look, feel, and performance as their traditionally manufactured counterparts.
AMT’s PostPro SF chemical vapor smoothing process automatically smooths and seals the surfaces of 3D printed polymer parts, achieving a surface finish with an injection molding look and feel.
The process works by suspending batches of parts in an ergonomically designed sealed processing chamber, which has a proprietary solvent blend introduced in vapor form in a closed-loop system. The consumable reflows the polymer surface thus removing irregularities and sealing the part. The highly controllable and repeatable process is non-line-of-site and therefore can smooth complex geometries without degrading the mechanical properties.
Enhanced part properties:
By removing crack initiation sites, the vapor smoothing process completely seals the part’s surface resulting in an increase in elongation at break (EAB) with no loss in ultimate tensile strength. The sealed surface makes the parts airtight and watertight, enabling them to be used in highly regulated end-use applications.

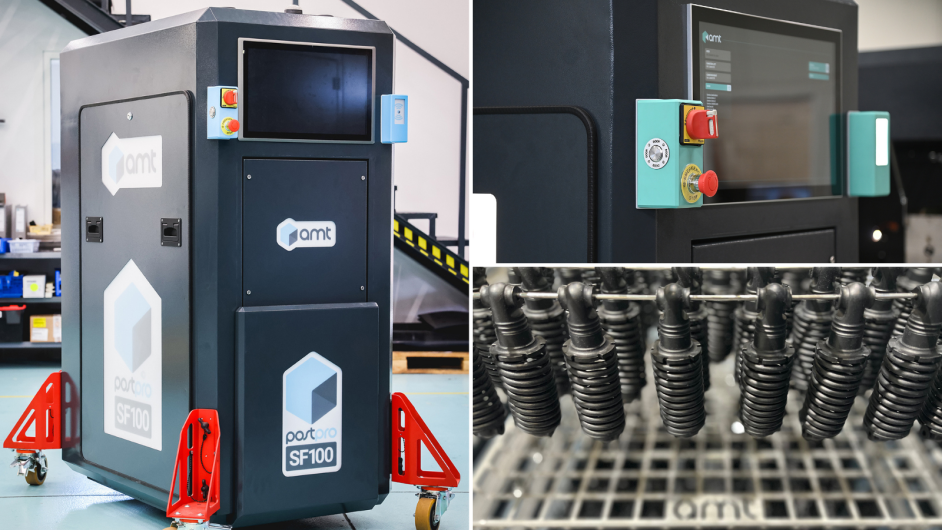

PostPro SF hardware:
The PostPro SF systems feature additive manufacturing 2.0 software and hardware architecture providing a fast and efficient user experience. Its compact and ergonomic form factor allows easier operation while taking up less valuable floor space.
The SF series was designed to increase efficiency in terms of potential throughput, thus reducing lead-time and cost-per-part.
Offering 100 liters of processing space, the PostPro SF100 is ideal for high production volumes, whereas the PostPro SF50 has 50 litres of processing space, ideal for lower volumes.
Compatibility:
The PostPro SF systems are compatible with a range of polymers including Polyamide (PA)-12, PA-11, PA-6, Thermoplastic Polyurethane (TPU), TPE-210 elastomer materials, Polypropylene (PP), Polymethyl Methacrylate (PMMA) Acrylonitrile butadiene styrene (ABS), and many more.
It is capable of processing Multi Jet Fusion (MJF), Selective Laser Sintered (SLS), Selective Absorption Fusion (SAF) and Fused Deposition Modelling (FDM) 3D printed parts to the desired surface roughness.
Industry 4.0 automation:
Industry 4.0 ready system with the capability to seamlessly connect with external MES and ERP/MRP. systems.
Complies with all industrial health and safety standards:
Proprietary industry-accepted consumables that meet the requirements for highly regulated applications from medical and dental to consumer and food applications. The consumables are non-flammable and are delivered to the customer in quick-change cartridges through an automated ordering system. The user has a choice of consumables depending on their specific processing requirements. AMT does not use corrosive and explosive acid mixes in the machine.
Safe and sustainable:
Fully closed-loop system to ensure operator and end-user safety. Zero system waste and full consumable recycling.
The PostPro Surface Finishing (SF) series is a revolutionary chemical vapor smoothing technology that sets new benchmark gold standards for the AM industry.
Download the spec sheet: https://amtechnologies.com/vapor-smoothing/
Watch system video: https://youtu.be/rOquW9Kxpxs
