CONCR3DE Printing B.V.

Handling & Post-Processing

Trade fair innovation

Handling & Post-Processing

CONCR3DE Printing B.V.
Supplier profileAll products
Contact supplier

Description

CUSTOMIZE YOUR PROCESS
Our binder jetting technology does not make use of supports, which significantly reduces the post-printing efforts. However, based on the type of material and scale, several process steps are required to get from the green state, immediately after printing, to the final material properties. At CONCR3DE, we understand every step and created the tools to make production as efficient as possible. That integral knowledge allows us to design the custom process that fits your current production workflow and facility infrastructure.

DEPOWDERING BOX
This tool has identical dimensions to the Armadillo Gray print bed. It allows for easy removal of an entire print volume for post processing without the need to depowder in its green state. The Depowdering Box is a great fit with fragile parts that require oven curing, such as ceramics. It is compatible with mechanical lifting tools, such as forklifts or hoists.

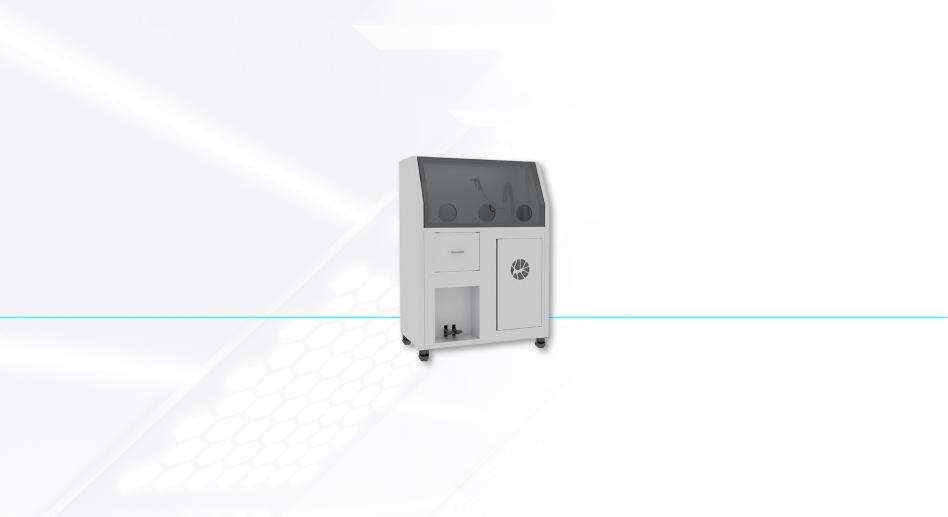

DEPOWDERING STATION
Our Depowdering Station offers a clean chamber to easily depowder prints, with a rotating platform to reach in the tiniest nooks and crannies. Its integrated air compressor and industrial vacuum remove even the finest of powder residue, speeding up the depowdering process and keeping your infrastructure clean.

More from us

Our website

More products by CONCR3DE Printing B.V.

Trade fair innovation

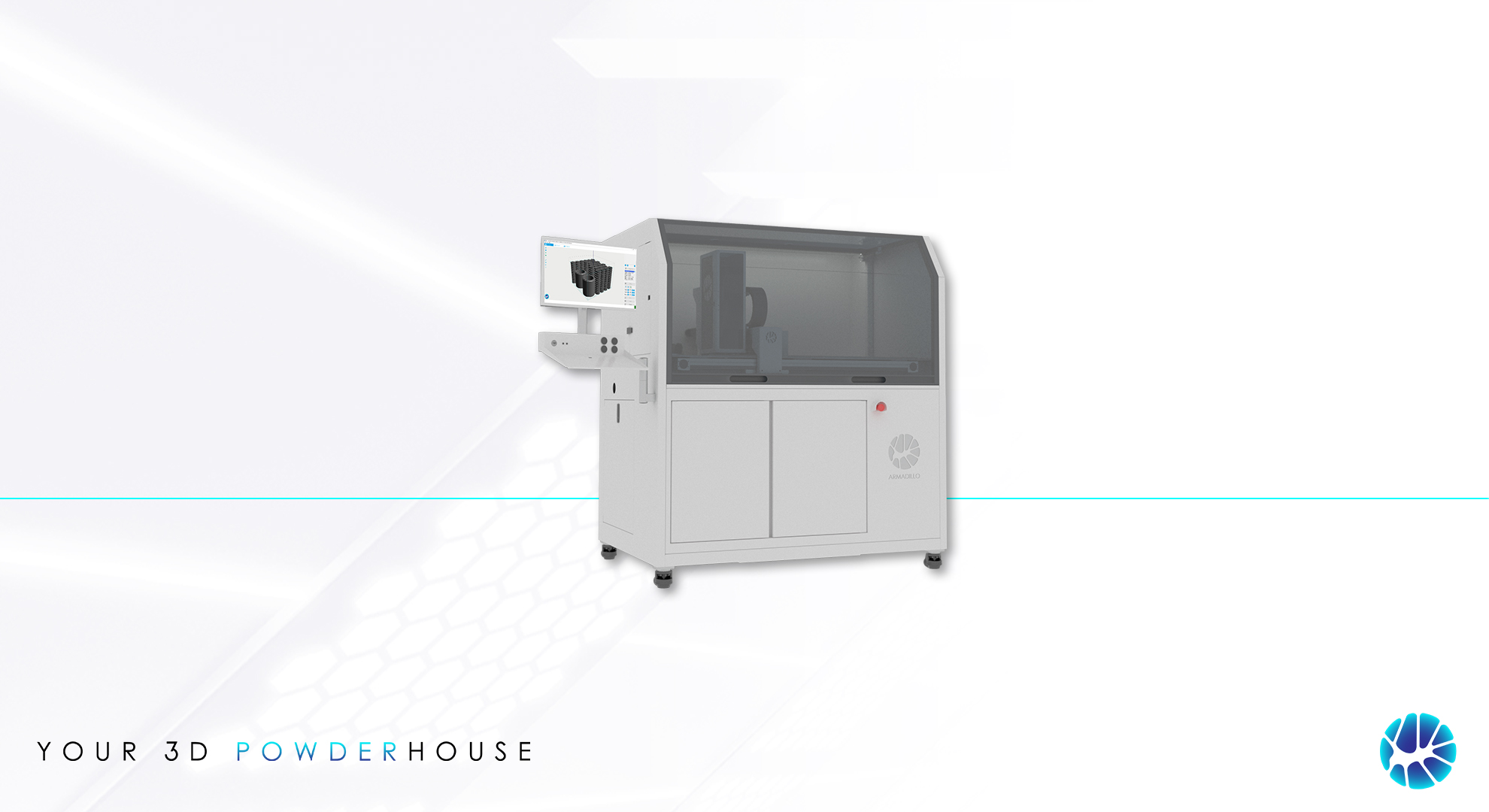

Armadillo (XL)

ARMADILLO (XL) WHITE - FOR RESEARCHERS, BY RESEARCHERS
Armadillo White (XL) was designed to help material researchers and scientists explore the full potential of additive manufacturing. This modular, accessible platform can use any available CONCR3DE powder or binder - but invites you to create new standards and novel applications. Every single setting, from speed to saturation and from the binder droplet size and shape to UV- or infrared curing options – Armadillo White (XL) gives you full control over the 3D printing process and results.

ARMADILLO (XL) WHITE - TECHNICAL SPECIFICATIONS
Print box dimensions
370 x 260 x 250 mm or 440 x 440 x 250 mm (XL)

Capacity
48 or 96 (XL) liters/day

Printhead precision
400 DPI or 720 DPI

Layer height
40 – 500 μm

Drop size variability
5 – 200 pL

Powder compatibility
Any

Binder compatibility
Aqueous, solvent, particle filled, phenolic, inorganic, UV curing

Connectivity
Ethernet (cable included)

Power requirements
2x 230 V

Dimensions
1.600 x 1.100 x 1.600 mm or 2.300 x 1.250 x 1.900 mm (XL)

Space requirements
2.400 x 2.000 x 2.200 mm or 3.100 x 2.200 x 2.500 mm (XL)

Weight
450 kg or 550 kg (XL)

Software
NOAH R&D with open access (included)

Are you curious to learn how Armadillo White (XL) enables the unimaginable for your research? Visit us on stand 12.1 D19!

ARMADILLO (XL) BLUE - THE STANDARD FOR INDUSTRY & HIGH-TECH
Armadillo Blue (XL) is the most cost-effective production platform to create high-quality products and parts in materials like technical ceramics and metals. This printer is compatible with CONCR3DE binders for printing metal or ceramic materials and features several additional modules that make it highly suitable for high tech materials and applications It offers a large workspace based on our high precision jetting system and comes with our intuitive open software.


ARMADILLO (XL) BLUE - TECHNICAL SPECIFICATIONS
Print box dimensions
370 x 260 x 250 mm or 440 x 440 x 250 mm (XL)

Capacity
48 or 96 (XL) liters/day

Printhead precision
400 DPI

Layer height
100 – 500 μm

Powder compatibility
PC & PM range ceramic and metal powders

Binder compatibility
BC & BM range binders

Connectivity
Ethernet (cable included)

Power requirements
2x 230 V

Dimensions
1.600 x 1.100 x 1.600 mm or 2.300 x 1.250 x 1.900 mm (XL)

Space requirements
2.400 x 2.000 x 2.200 mm or 3.100 x 2.200 x 2.500 mm (XL)

Weight
450 kg or 550 kg

Software
NOAH Production (included)

Visit us on booth 12.1 D19 to learn more about all the ways Armadillo Blue (XL) can help you produce the remarkable!

ARMADILLO GRAY (XL) - STONE AND MINERAL PRINTING
Armadillo Gray (XL) allows you to print a wide range of stone and concrete materials using readily available powders and binders. This printer was designed for production runs with smaller objects. It is also exceptionally well suited to perform low volume tests or sample prints in conjunction with our large-scale printer options. Armadillo Gray (XL) features all the add-ons we came to know as indispensable for efficiently printing high-quality objects.

ARMADILLO GRAY (XL) - TECHNICAL SPECIFICATIONS
Print box dimensions
370 x 260 x 250 mm or 440 x 440 x 250 mm (XL)

Capacity
48 or 96 (XL) liters/day

Printhead precision
400 DPI

Layer height
230 μm

Powder compatibility
PS, PF, PR range mineral powders

Binder compatibility
BS & PF range binders

Connectivity
Ethernet (cable included)

Power requirements
2x 230 V

Dimensions
1.600 x 1.100 x 1.600 mm or 2.300 x 1.250 x 1.900 mm (XL)

Space requirements
2.400 x 2.000 x 2.200 mm or 3.100 x 2.200 x 2.500 mm (XL)

Weight
450 kg or 550 kg

Software
NOAH Production (included)

Can we tell you more about the ways Armadillo Gray (XL) allows you to shape the previously impossible? You are welcome at stand 12.1 D19.

ARMADILLO GREEN (XL) - SUSTAINABLE PRODUCTION REINVENTED
Armadillo Green is a 3D bioprinter designed to print environmentally friendly, natural materials. It was designed for CONCR3DE’s unique biodegradable Bio Binder to print with all kinds of sawdust - even the sawdust from your own workshop or factory. With the Armadillo Green (XL) printer you can give your bio-based waste materials a second life in an entirely new shape.

ARMADILLO GREEN (XL) - TECHNICAL SPECIFICATIONS
Print box dimensions
370 x 260 x 250 mm or 440 x 440 x 250 mm (XL)

Capacity
48 or 96 (XL) liters/day

Printhead precision
400 DPI

Layer height
300 μm

Powder compatibility
PB & PF range powders

Binder compatibility
BB range binders

Connectivity
Ethernet (cable included)

Power requirements
2x 230 V

Dimensions
1.600 x 1.200 x 1.600 mm or 2.300 x 1.250 x 1.900 mm (XL)

Space requirements
2.400 x 2.000 x 2.200 mm or 3.100 x 2.200 x 2.500 mm (XL)

Weight
450 kg or 550 kg (XL)

Software
NOAH Production (included)

Can we tell you more about the ways Armadillo Green (XL) enables you to run producion with bio-based or upcycled materials? Meet our team at stand 12.1 D19.

Trade fair innovation

Elephant

ELEPHANT BLUE - INDUSTRIAL SISIC PRODUCTION
Our Elephant Blue large-scale printer was designed to 3D print ceramics at production scale. It delivers the many benefits of additive manufacturing, including speed, freedom of design, flexibility, and sustainability in an integrated solution for industrial production. This production system features an automated powder feeder and Job Boxes that can be easily swapped, enabling continuous operation.

Elephant Blue was specifically optimized to 3D print Silicon Carbide at production scale. CONCR3DE offers a Plug-and-Play Silicon Carbide A material which includes an engineered powder with Polyvinyl Alcohol (PVA) and is based on our aqueous binder BC1001. The final material properties can be fine-tuned to fit specific applications by optionally adding carbon and infiltrating the printed parts with additional silicon. Other material options include Silicon Carbide S that is created using solvent binder BM1001, as well as a Silicon Carbide P that is printed using a traditional phenolic binder BF1002. Both alternatives call for a different production process, in which CONCR3DE is happy to assist you every step of the way.


ELEPHANT BLUE - TECHNICAL SPECIFICATIONS
Print box dimensions
1.000 x 2.000 x 1.000 mm

Capacity
2.000 liters/day

Printhead precision
400 DPI

Layer height
150 - 300 μm

Powder compatibility
Optimized for PC1001 SiC Powder

Binder compatibility
BC, BM & BF range binders

Connectivity
Ethernet (cable included)

Power requirements
2x 400 V

Dimensions
2.800 x 6.500 x 4.500 mm

Software
NOAH Production (included)

Visit us on booth 12.1 D19 to learn more about all the ways Elephant Blue can help you produce the remarkable!

ELEPHANT GRAY - STONE AND MINERAL PRODUCTION
Elephant Gray was designed to produce complex shapes and intricate details at scale. CONCR3DE brings the many benefits of binder jetting additive manufacturing, including speed and flexibility, in a solution that truly fits industrial production. From automated powder feeding to swappable Job Boxes and industrial post-processing Stations for automated cleaning, powder recycling and sealing that fit Elephant’s print size.

Our pre-engineered stone-like material range for large-scale printers includes limestone, granite, and marble. Like natural stone, these robust materials offer excellent compressive strength and longevity, and are highly suitable for outdoor applications. All materials are optimized for smooth surface printing without further post processing. This open platform printer can also print custom mineral formulations - if your current raw material is available in powder form, we can potentially transform it into a custom print material. Even waste streams, like sawdust or minerals from urban mining, can be upcycled into products.

ELEPHANT GRAY - TECHNICAL SPECIFICATIONS
Print box dimensions
1.000 x 2.000 x 1.000 mm

Capacity
2.000 liters/day

Printhead precision
400 DPI

Layer height
300 μm

Powder compatibility
PS, PF, PR range mineral powders

Binder compatibility
BS & BR range binders

Connectivity
Ethernet (cable included)

Power requirements
2x 400 V

Dimensions
2.800 x 6.500 x 4.500 mm

Software
NOAH Production (included)

Can we tell you more about the ways Elephant Gray allows you to shape the previously impossible? You are welcome at stand 12.1 D19.
