Description

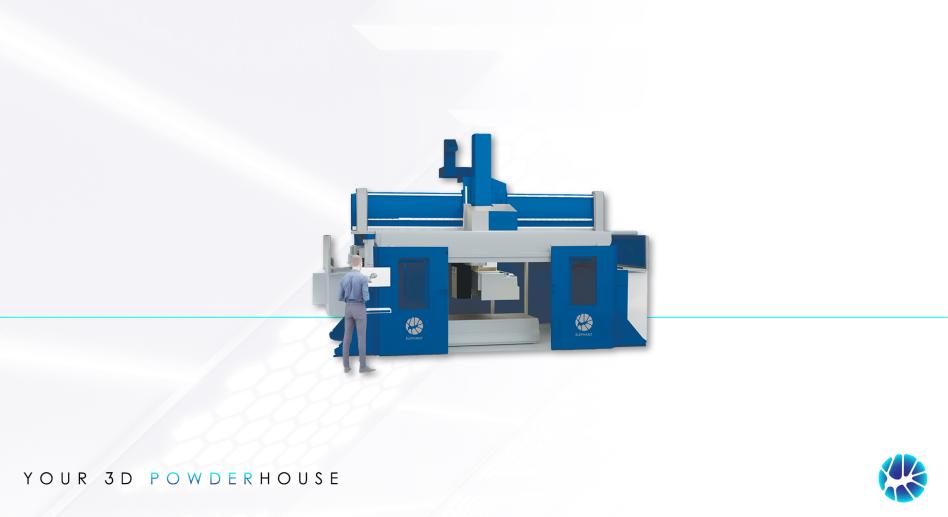

ELEPHANT BLUE - INDUSTRIAL SISIC PRODUCTION
Our Elephant Blue large-scale printer was designed to 3D print ceramics at production scale. It delivers the many benefits of additive manufacturing, including speed, freedom of design, flexibility, and sustainability in an integrated solution for industrial production. This production system features an automated powder feeder and Job Boxes that can be easily swapped, enabling continuous operation.
Elephant Blue was specifically optimized to 3D print Silicon Carbide at production scale. CONCR3DE offers a Plug-and-Play Silicon Carbide A material which includes an engineered powder with Polyvinyl Alcohol (PVA) and is based on our aqueous binder BC1001. The final material properties can be fine-tuned to fit specific applications by optionally adding carbon and infiltrating the printed parts with additional silicon. Other material options include Silicon Carbide S that is created using solvent binder BM1001, as well as a Silicon Carbide P that is printed using a traditional phenolic binder BF1002. Both alternatives call for a different production process, in which CONCR3DE is happy to assist you every step of the way.
ELEPHANT BLUE - TECHNICAL SPECIFICATIONS
Print box dimensions
1.000 x 2.000 x 1.000 mm
Capacity
2.000 liters/day
Printhead precision
400 DPI
Layer height
150 - 300 μm
Powder compatibility
Optimized for PC1001 SiC Powder
Binder compatibility
BC, BM & BF range binders
Connectivity
Ethernet (cable included)
Power requirements
2x 400 V
Dimensions
2.800 x 6.500 x 4.500 mm
Software
NOAH Production (included)
Visit us on booth 12.1 D19 to learn more about all the ways Elephant Blue can help you produce the remarkable!
ELEPHANT GRAY - STONE AND MINERAL PRODUCTION
Elephant Gray was designed to produce complex shapes and intricate details at scale. CONCR3DE brings the many benefits of binder jetting additive manufacturing, including speed and flexibility, in a solution that truly fits industrial production. From automated powder feeding to swappable Job Boxes and industrial post-processing Stations for automated cleaning, powder recycling and sealing that fit Elephant’s print size.
Our pre-engineered stone-like material range for large-scale printers includes limestone, granite, and marble. Like natural stone, these robust materials offer excellent compressive strength and longevity, and are highly suitable for outdoor applications. All materials are optimized for smooth surface printing without further post processing. This open platform printer can also print custom mineral formulations - if your current raw material is available in powder form, we can potentially transform it into a custom print material. Even waste streams, like sawdust or minerals from urban mining, can be upcycled into products.
ELEPHANT GRAY - TECHNICAL SPECIFICATIONS
Print box dimensions
1.000 x 2.000 x 1.000 mm
Capacity
2.000 liters/day
Printhead precision
400 DPI
Layer height
300 μm
Powder compatibility
PS, PF, PR range mineral powders
Binder compatibility
BS & BR range binders
Connectivity
Ethernet (cable included)
Power requirements
2x 400 V
Dimensions
2.800 x 6.500 x 4.500 mm
Software
NOAH Production (included)
Can we tell you more about the ways Elephant Gray allows you to shape the previously impossible? You are welcome at stand 12.1 D19.
