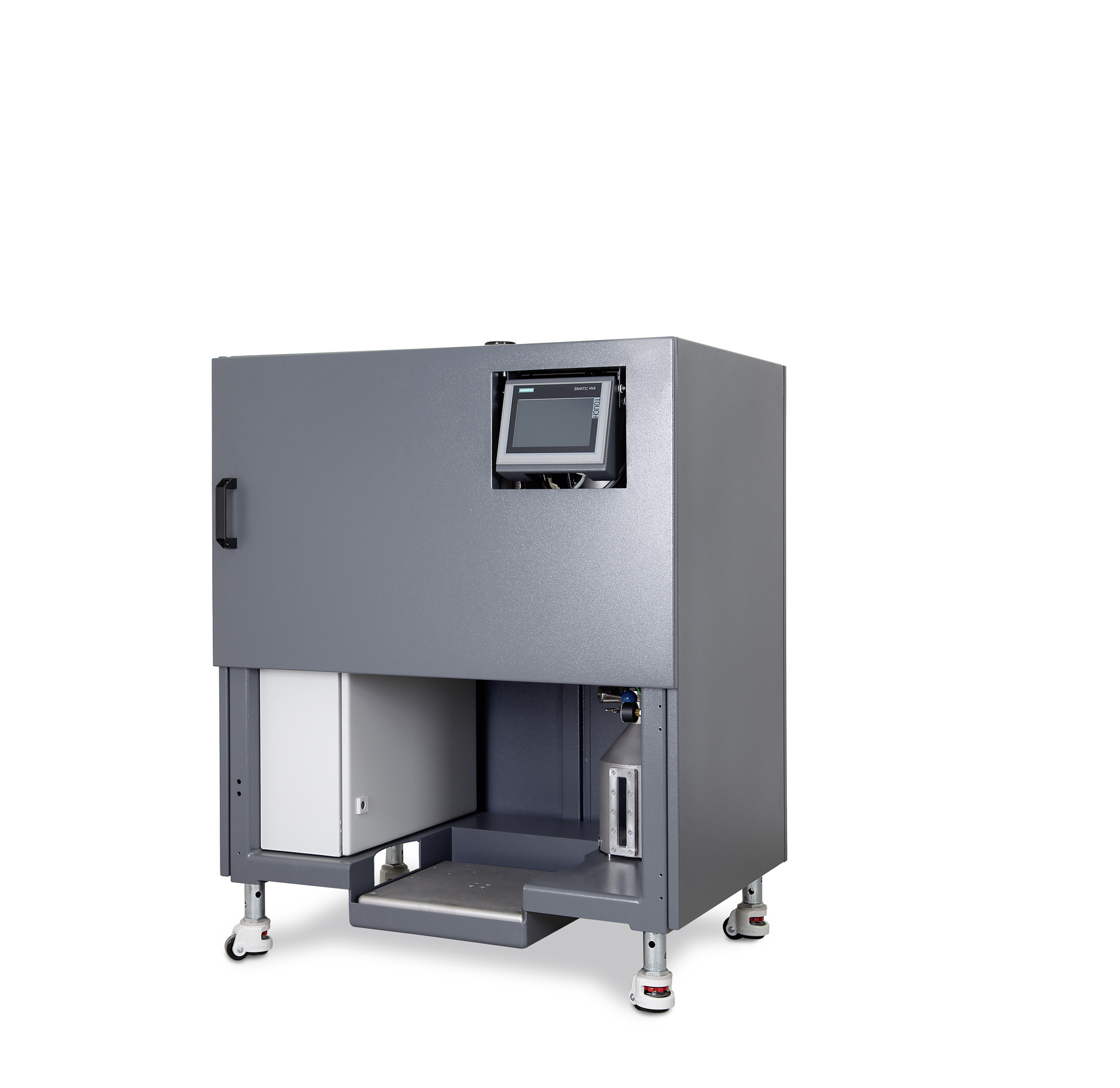

The extremely compact MPS X1 Ultrasonic sieving station makes it possible to realize pure powder handling exclusively via containers. Despite the very compact design, large powder quantities can be efficiently recovered. For the feeding of already used powder as well as for the removal of the processed powder, already existing containers are used. Facts that will convince you

• Compact sieving station with effective ultrasonic drive
• Closed piping inside the machine
• ATEX conform for zones 20, 21 and 22
• Mobile design for use on multiple printers
• Use of existing tanks
• Compatible with all common 3D printers

In addition to the actual task of ultrasonic sieving, the MPS X1 sieving station also combines the functions of recovery, inerting with inert gas and weighing in one compact unit. Our entry into uncomplicated powder handling can be operated intuitively via the touch panel (HMI), works fully automatically via recipes and achieves a sieving capacity of up to 720 kilograms per hour.

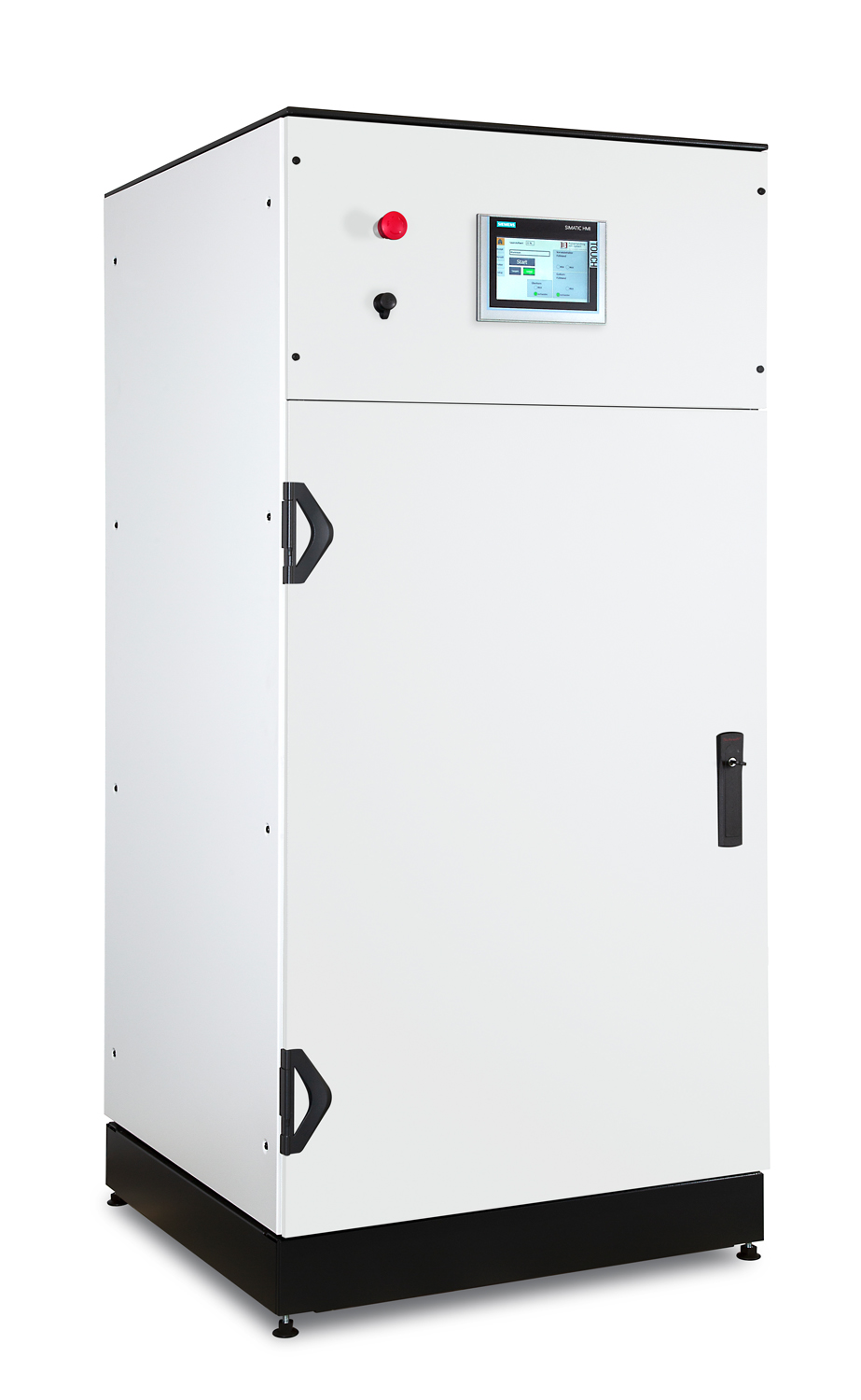

The mobile and compact MPS 5 powder sieving station is the ideal entry into powder handling for small building chambers. The machine works with all common 3D printers in industrial additive manufacturing. The integration is simple. Facts that will convince you:

• Compact sieving station with effective ultrasonic sieve module
• Closed piping inside the machine
• ATEX compliant for zones 20, 21 and 22
• Inert sieving and filling process
• Integrated vacuum conveyer
• Compatible with all 3D printers

In addition to the actual task of screening, the MPS 5 sieving station also combines the functions of conveying, recycling and inerting with inert gas in one compact unit. Our entry into uncomplicated powder handling can be operated intuitively via the touch panel (HMI), works fully automatically via recipes and achieves a sieving capacity of up to 720 kilograms per hour.

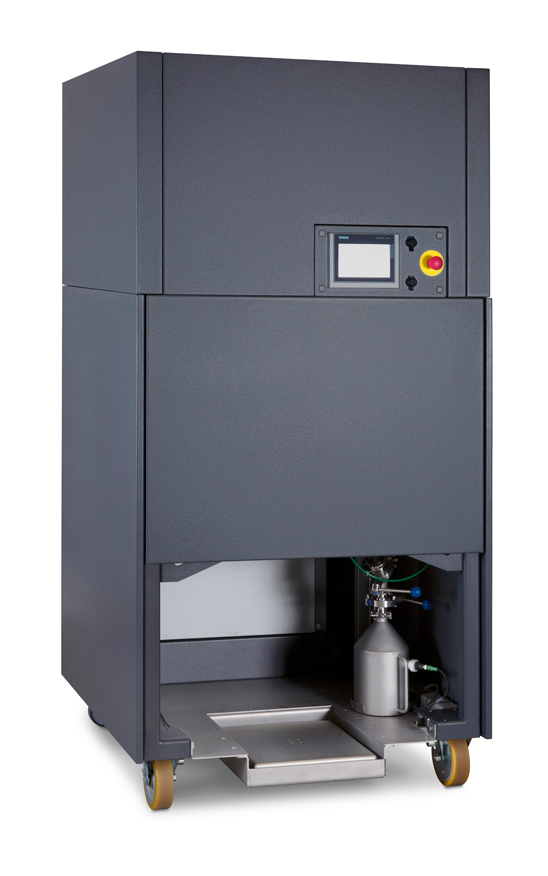

Behind the type specification MPS-30 stands a mobile ultrasonic sieving station for use with higher powder requirements. With the integrated vacuum conveyor, the machine offers a feed capacity of 30 liters and sieves up to three liters of aluminum powder per minute. The sieving station can be operated autonomously on site via the integrated touch display and is also suitable for use with several printers. Facts that will convince you:

• Our most powerful ultrasonic sieve module for high sieve throughput
• Mobile design for use on multiple printers
• Automated processes for pneumatic conveying, inerting, screening, filling
• Integrated weighing for feed and filling containers
• ATEX compliant for zones 20, 21 and 22
• Compatible with a wide range of 3D printers

In addition to the actual task of sieving, the MPS 30 sieving station also combines the functions of pneumatic conveying, recovery and inerting for larger installation spaces. Two integrated scales allow both gravimetrically defined emptying and filling of building spaces and a wide variety of containers.
