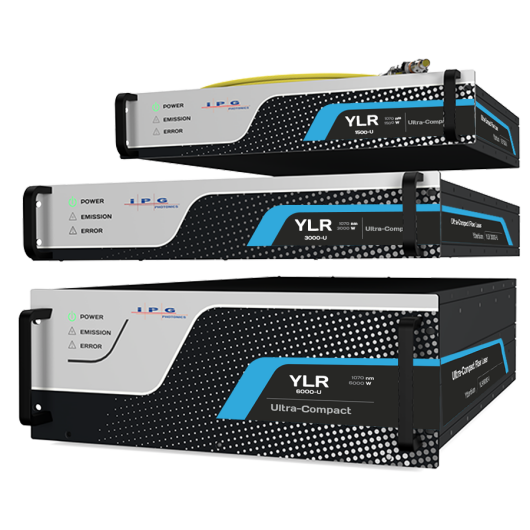

YLR Series diode-pumped CW fiber lasers provide a unique combination of high power, high stability, ideal beam quality, fiber delivery, ultra-long lifetime and record wall-plug efficiency. Single-mode output up to 3 kW may be integrated via collimator or QBH plugin connector. Standard wavelength is 1070 nm, with other wavelengths in 1006-1080 nm available upon request. Multi-mode output is emitted from a step index fiber with core diameter from 50 to 200 μm, allowing optimal performance in critical welding and additive manufacturing applications. Air-cooled units are available up to 1 kW and water-cooled units up to 4 kW.

The CW output can be modulated up to 50 kHz. The YLR compact 19”rack mounted packages offered as a cost effective, adaptable solution for a clean room system
or for integration into a production line. Featuring optional front panel touch display or standard rear
Analog, RS-232 or Ethernet controls, the rack mount configuration is ideal for a variety of applications from precision materials processing to advanced and scientific applications. Beam delivery options include coupler, beam switch (time or energy share) and delivery optics such as cutting and welding heads.
