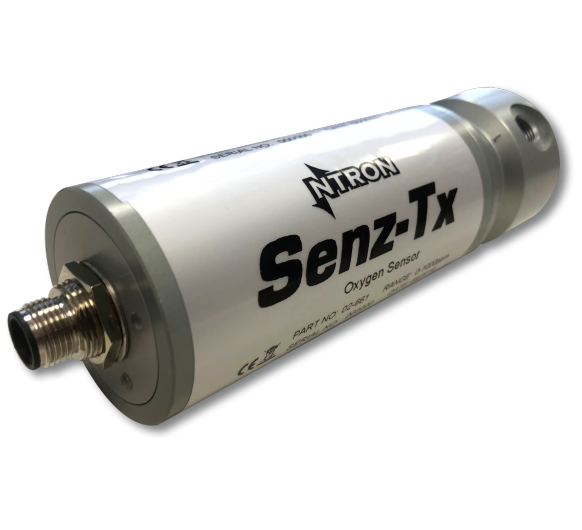

The SenzTx is a compact and robust O2 transmitter that utilizes zirconia or electrochemical technology to provide a reliable measurement of oxygen concentration. The zirconia sensor offers a fast response time and long lifetime with virtually no drift, while the electrochemical sensor enables measurement in hydrocarbon-containing background gases.

The minimum output range of 0 to 1000ppm is ideal for nitrogen generation or glove box monitoring. For oxygen concentrators, the SenzTx transmitter can also be supplied with measurement ranges from 0 to 96% O2.

Flexibility is further enhanced by multiple output options for process connection.

• Options: Zirconia or electrochemical sensor technology
• Measuring range: 0 to 1000ppm up to 0 to 100% O2
• RS 485 Modbus protocol
• 24VDC power supply
• KF40 flange, flow
• Options for orifice process connection available
• Combined sensor & electronics enables easy integration
• Lightweight and robust (< 0.3Kgs)

Associated dew point humidity sensor: Dew point transmitter - Michell Easidew EA2Humidity transmitter for safe and hazardous areas.
Industry 4.0 real-time monitoring system:

The Rotronic Monitoring System (RMS) provides a modern platform for integrating sensors, data sources and third-party software platforms. It provides end users with a secure, reliable and user-friendly interface for live data, reporting and alerting.
