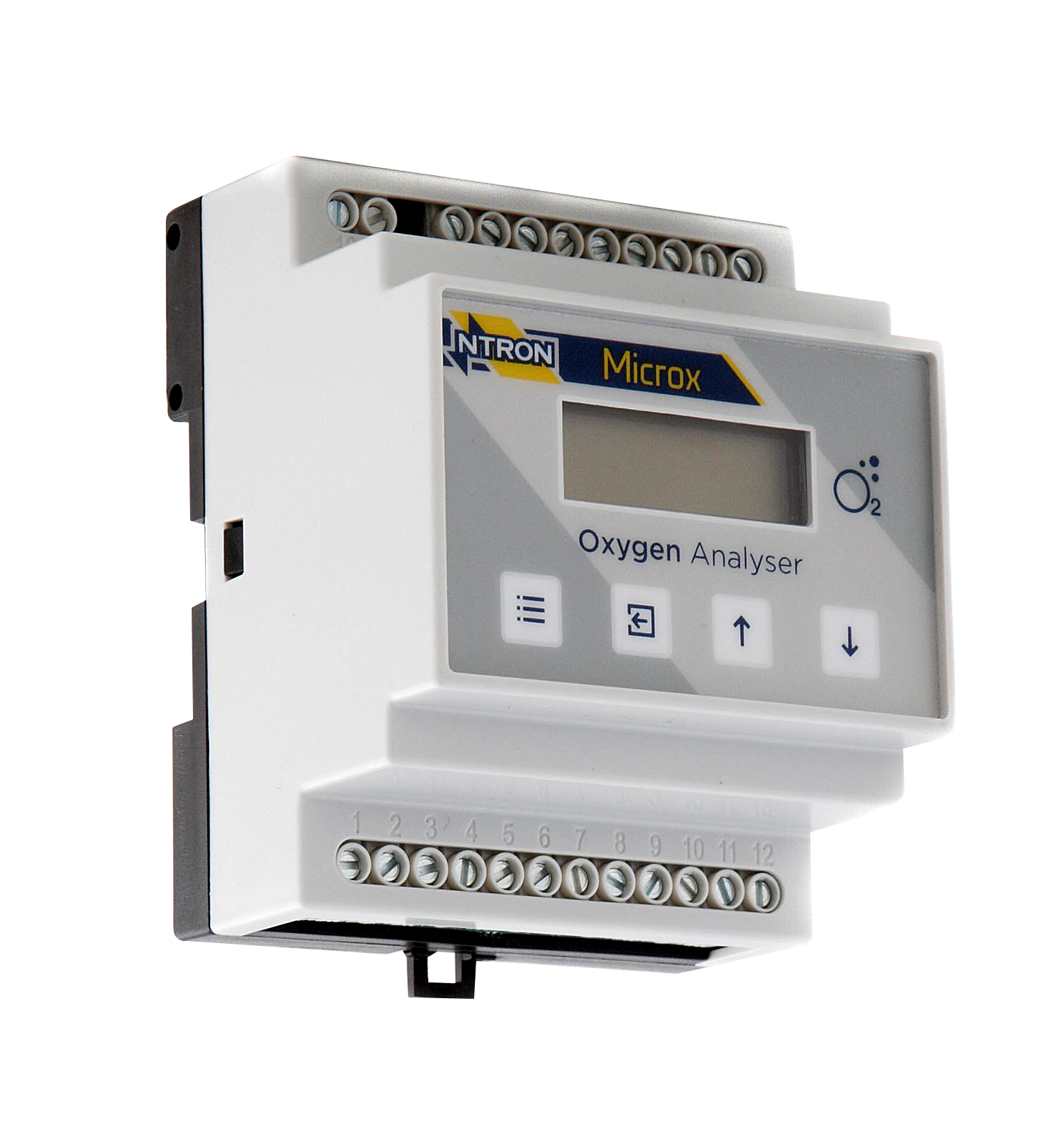

Microx is a compact oxygen analyzer that features a remote sensor and three mounting options for display modules. Ntron Microx utilizes zirconia or electrochemical technology to provide a reliable measurement of oxygen concentration. The zirconia sensor offers a fast response time and long life with virtually no drift, while the electrochemical sensor enables measurement in background gases containing hydrocarbons.

The minimum measurement range of 0 to 1000ppm is ideal for nitrogen generation or glove box monitoring. For oxygen concentrators, the Microx analyzer can also be supplied with measuring ranges up to 0 to 96% O2. Flexibility is further enhanced by various mounting options and multiple sensor types.

Features:

• Zirconia or electrochemical sensor technology as an option
• 0 to 100ppm, 0 to 1'000ppm, 0 to 25%, 0 to 96% O2
• Gas connections via KF40 or flow-through housing (with/without orifice) with M16 thread
• Options for top-hat rail / control panel / wall mounting
• 3 configurable alarm relays
• RS232 Comms
• LCD + 4 button HMI

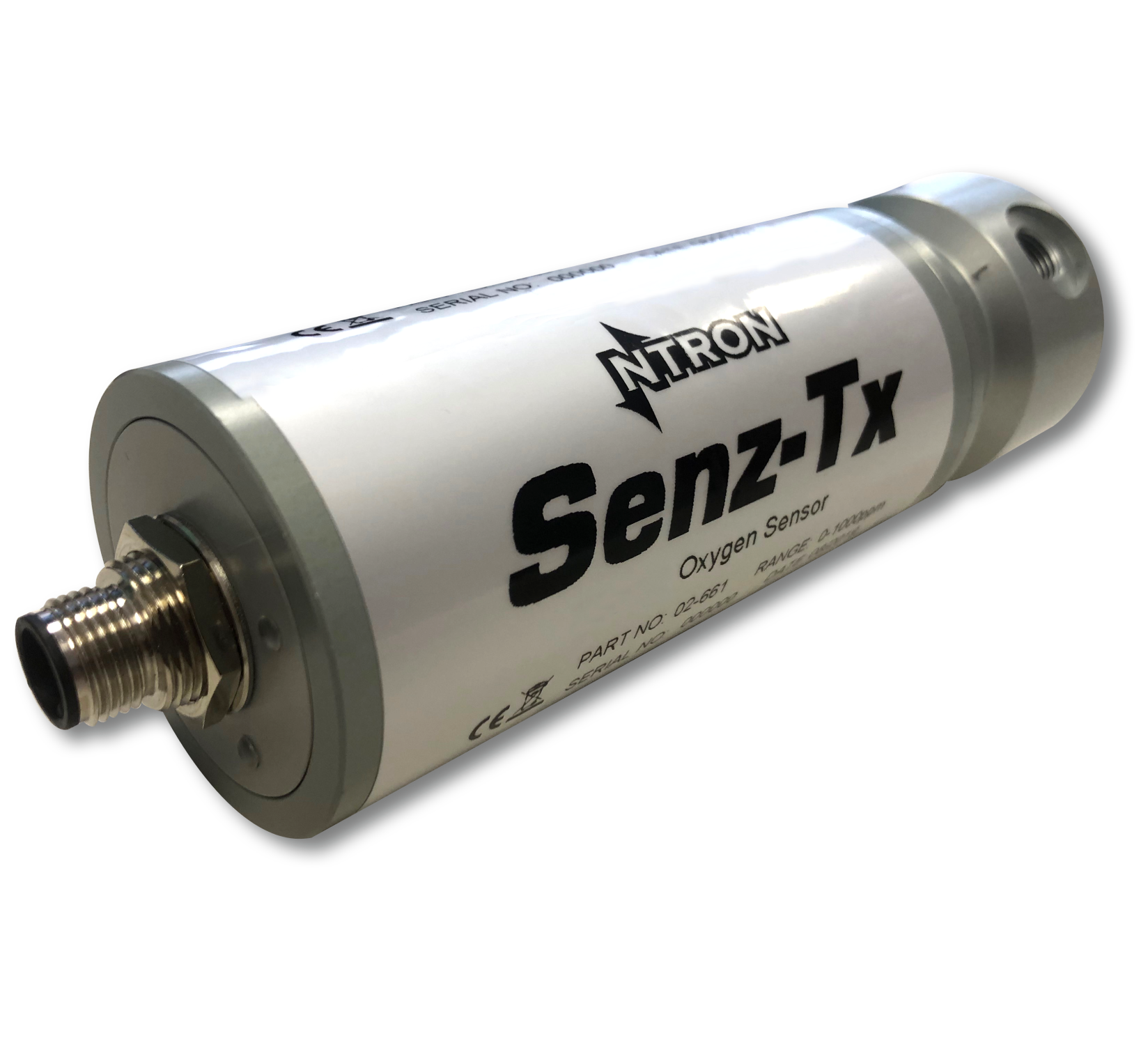

The SenzTx is a compact and robust O2 transmitter that utilizes zirconia or electrochemical technology to provide a reliable measurement of oxygen concentration. The zirconia sensor offers a fast response time and long lifetime with virtually no drift, while the electrochemical sensor enables measurement in hydrocarbon-containing background gases.

The minimum output range of 0 to 1000ppm is ideal for nitrogen generation or glove box monitoring. For oxygen concentrators, the SenzTx transmitter can also be supplied with measurement ranges from 0 to 96% O2.

Flexibility is further enhanced by multiple output options for process connection.

• Options: Zirconia or electrochemical sensor technology
• Measuring range: 0 to 1000ppm up to 0 to 100% O2
• RS 485 Modbus protocol
• 24VDC power supply
• KF40 flange, flow
• Options for orifice process connection available
• Combined sensor & electronics enables easy integration
• Lightweight and robust (< 0.3Kgs)

Associated dew point humidity sensor: Dew point transmitter - Michell Easidew EA2Humidity transmitter for safe and hazardous areas.
Industry 4.0 real-time monitoring system:

The Rotronic Monitoring System (RMS) provides a modern platform for integrating sensors, data sources and third-party software platforms. It provides end users with a secure, reliable and user-friendly interface for live data, reporting and alerting.

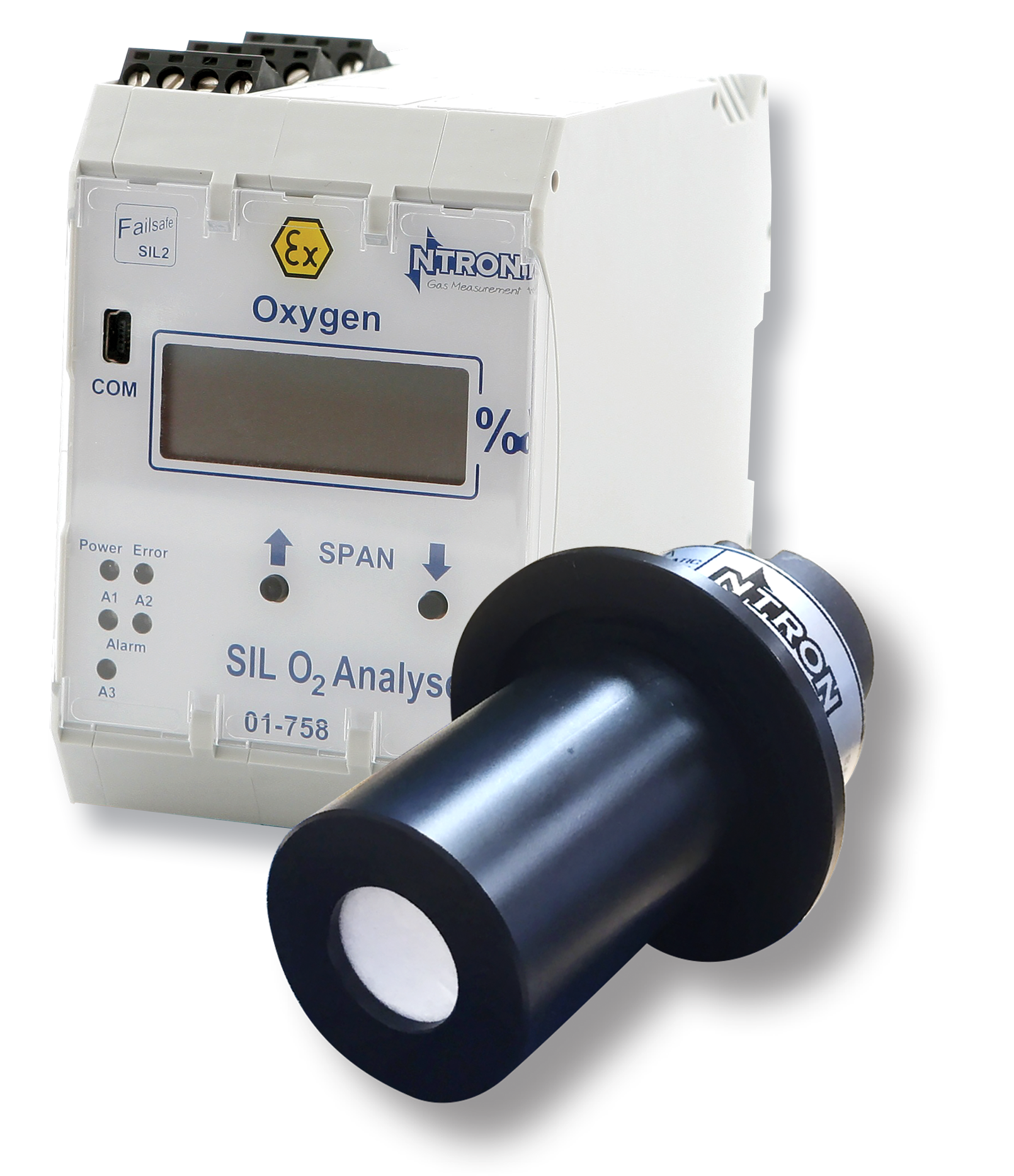

The SILO2 offers fast response, high repeatability and no sensor drift, making it a low maintenance analyzer solution that delivers reliable performance for safety critical process control applications such as gas generation (oxygen/nitrogen), additive manufacturing, pharmaceutical industries, and industrial gas.

With a measurement range of 0 to 25% oxygen, the analyzer unit features solid state ceramic electrode sensor technology suited to harsh process applications, analogue 4 to 20mA output for retransmission of measured signal (SIL2 Capable), RS485 communications, and 24VDC power supply.

The Din Rail mounted control unit with galvanic barrier included and remote electrochemical sensor with interconnecting cable (up to 30m) provides a flexible, easily integrated package. The installation is made even easier with the choice of three sensor mounting options: a flow-through base, TRI-Clamp or an ANSI 2” 150lbs flange.

Key features

• SIL2 Capable unit - Analyzer and galvanic isolation barrier in one device
• Measurement range: 0 to 25% O2
• Push button calibrations
• 3 configurable alarm outputs
• Compact for easy integration
