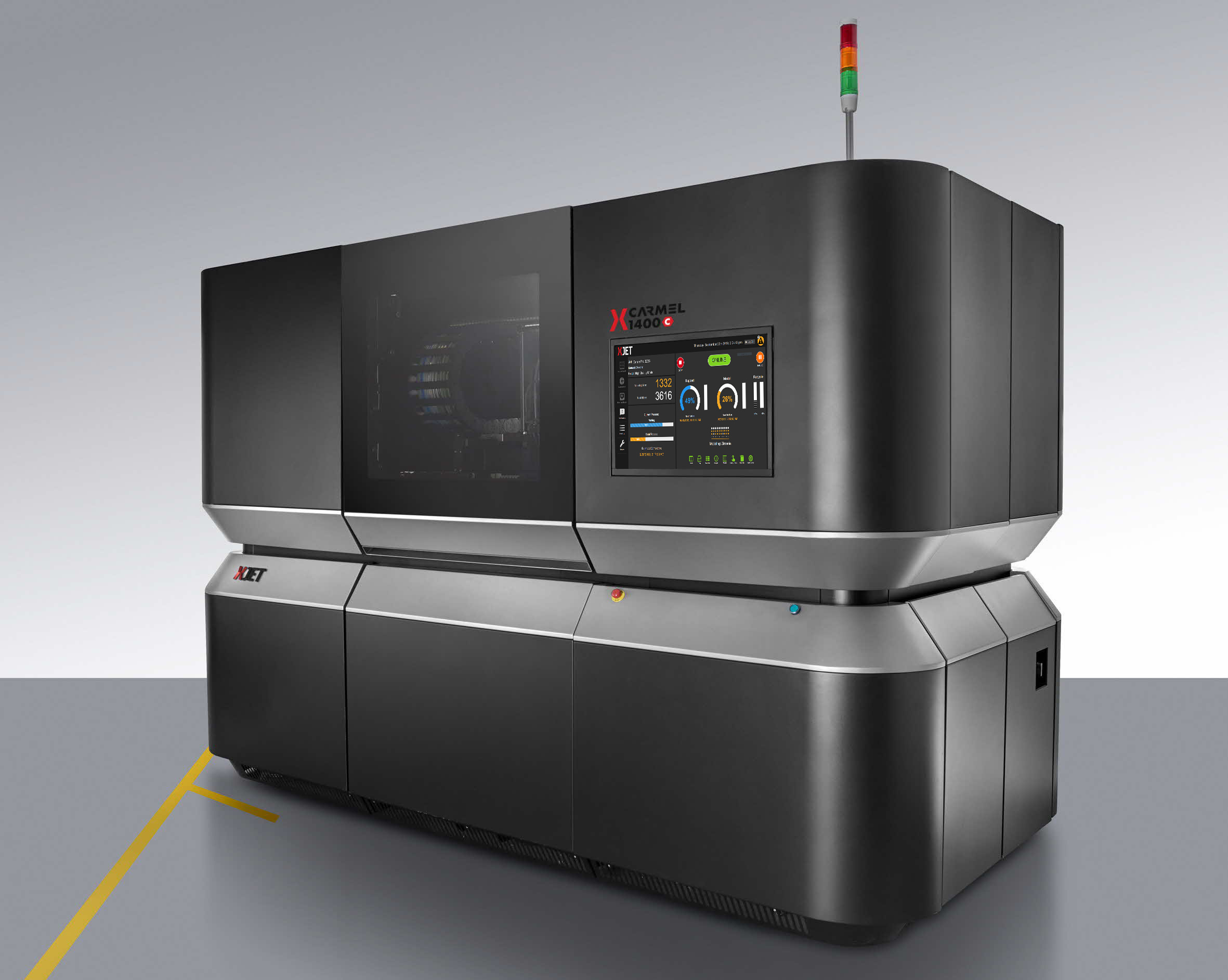

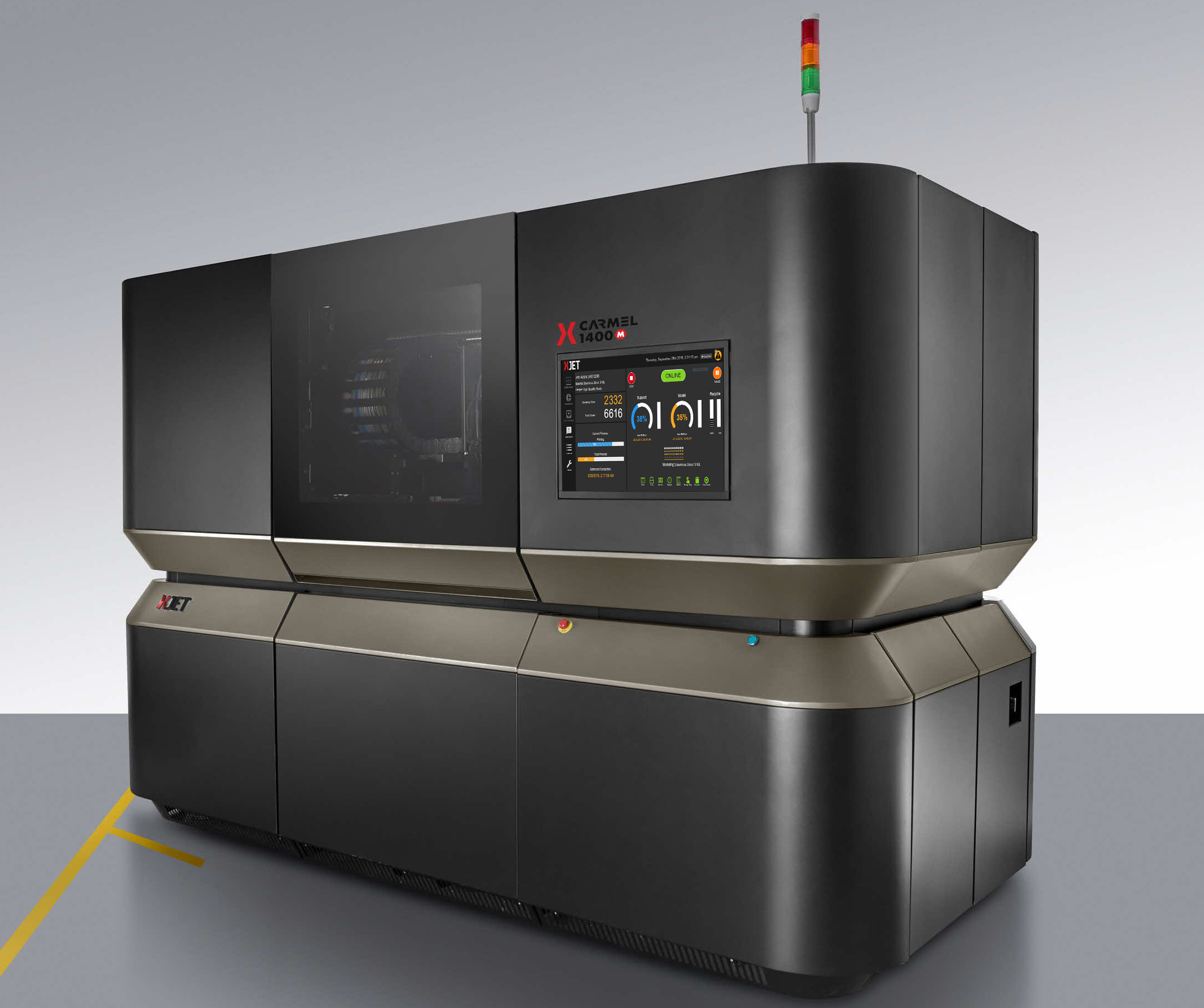

CARMEL 1400C – CERAMIC AM SYSTEM
The XJet Carmel 1400C deliver unrivaled quality, accuracy and repeatability to your applicational parts, with high productivity when it is needed the most.
From health care to industrial applications, the XJet Carmel 1400C can fit your needs, either in part complexity or high productivity.
Now you can do both at the same time with no compromise.
Unlashing the power of powderless Nano Particle Jetting™ (NPJ) technology
The XJet Carmel 1400C leverages XJet’s revolutionary, patented process to produce parts with unprecedented smoothness, details & density. NPJ inkjet technology enables the production of ceramic AM parts in materials you're familiar with (starting with Zirconia & Alumina), but with the advanced complexity and high requirements needed for today's manufacturers.
Industry first nano particle jetting technology enable highest density up to 100% with no comprise on details, part smoothness and best in class accuracy.
System
Build volume
500 x 280 x 200 mm; 19.7 x 11 x 7.9 inch; Removable
Material loading
Fully enclosed Build and Support ink cartridges
Layer thickness
5-10 microns
Building speed
Up to 1.5mm height per hour
Embedded O/S
Windows 7 or higher, 64-bit
Network connectivity
LAN – TCP/IP
Software package
Autodesk® Netfabb® Ultimate with remote view with mobile app.
User Experience
Touchscreen
Dimensions
310 x 212 x 185 cm; 122 x 83 x 72 Inch
Weight
3 Tons; 6614 LB
Electrical power
EU: 400 VAC; 3 Phases; 3 x 30A; 50/60 Hz
US: 208 VAC; 3 Phases; 3 X 50A; 60Hz
Air pressure required
7Bar
Environment operation
18° - 25°C; 64° - 77°F
Regulations conformity
CE; FCC; UL – In process
Materials
Materials
Zirconia, Alumina, Soluble support
Shelf life
Up to1 year under recommended conditions
Safety
MSDS available per material
Part Properties1
Accuracy2
Up to 50 microns
Minimum feature size
200microns
Density
Zirconia - 6.04 g/cm³ (>99.9%)
Alumina - 3.96 g/cm³ (>99.5%)
Tensile Strength3
Zirconia - 520 MPa
Alumina – 430 MPa
Surface roughness
N8-N9
Shrinkage
Linear & Isotropic;
Zirconia - 12.9% per dimension
Alumina - 15.4% per dimension
Disclaimer: The data included is for information purposes only and should not be considered specific advice to any customer project. The provision of the product described is subject to changes and XJet terms and conditions.
- All measurements are based on internal XJet lab testing made on lab specimens
- Depending on geometry, build parameters and model orientation
- Measured according to ASTM A240
