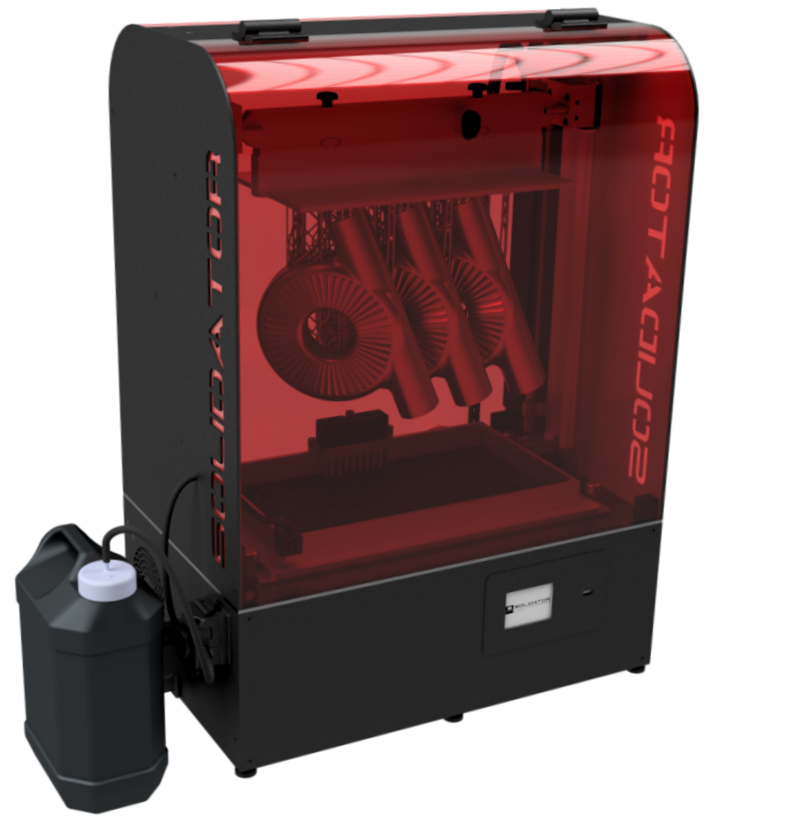

The Solidator 8K is a next generation ultra-fast resin 3D printer. It prints 20x faster than comparable standard FDM printers and 10x faster than SLA printers. The Solidator prints up to 9157 cc per hour.

The mask stereolithography 3D printing process used brings the highest throughput, because here each layer is cured at once via a mask exposure - a time-consuming point-by-point processing of the build space as with SLA 3D printers, FDM 3D printers and SLS 3D printers is not necessary. The large build area makes this advantage particularly large. The Solidator is the largest resin printer without the disadvantageous perforated printing plate.

Build space: 330 x 185 x 400 mm
Printing speed: 9157 cm³ / hour
Industries: Mechanical engineering, appliance manufacturing, electronics, dental, architecture, model making, rapid prototyping.
Automatic material supply: 5kg canister
Materials: Photopolymer / Resin / Brand: Solidator
Print area X-axis: 330 mm
Pressure range Y-axis: 185 mm
printing range Z-axis: 400 mm
Printing method: mSLA

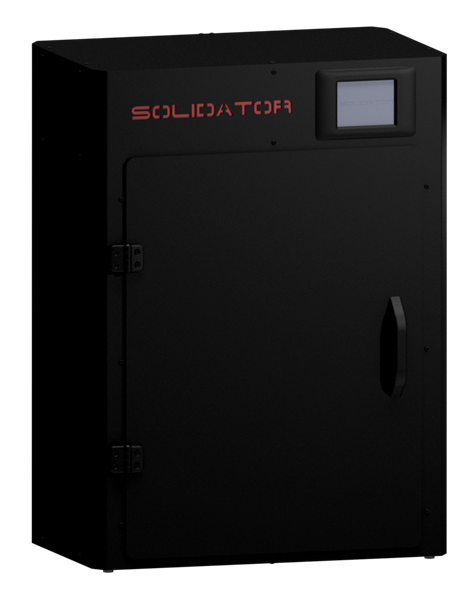

UV Curing Chamber for Solidator 3D Resin

Advantages:

- Fast curing 10-35 minutes depending on material

- Large objects up to 346 mm x 195 mm x 400 mm

- Maximum throughput due to flexible positioning

Technical data:

- 76 High Power LEDs for uniform 360° curing

- 3 specially coated glass plates with flexible positioning

- Highly reflective materials in the interior

- LEDs with very long lifetime

- Touch display

- Safety control

- Active cooling

- 405 nm wavelength

Dimensions:

40x28x58cm
