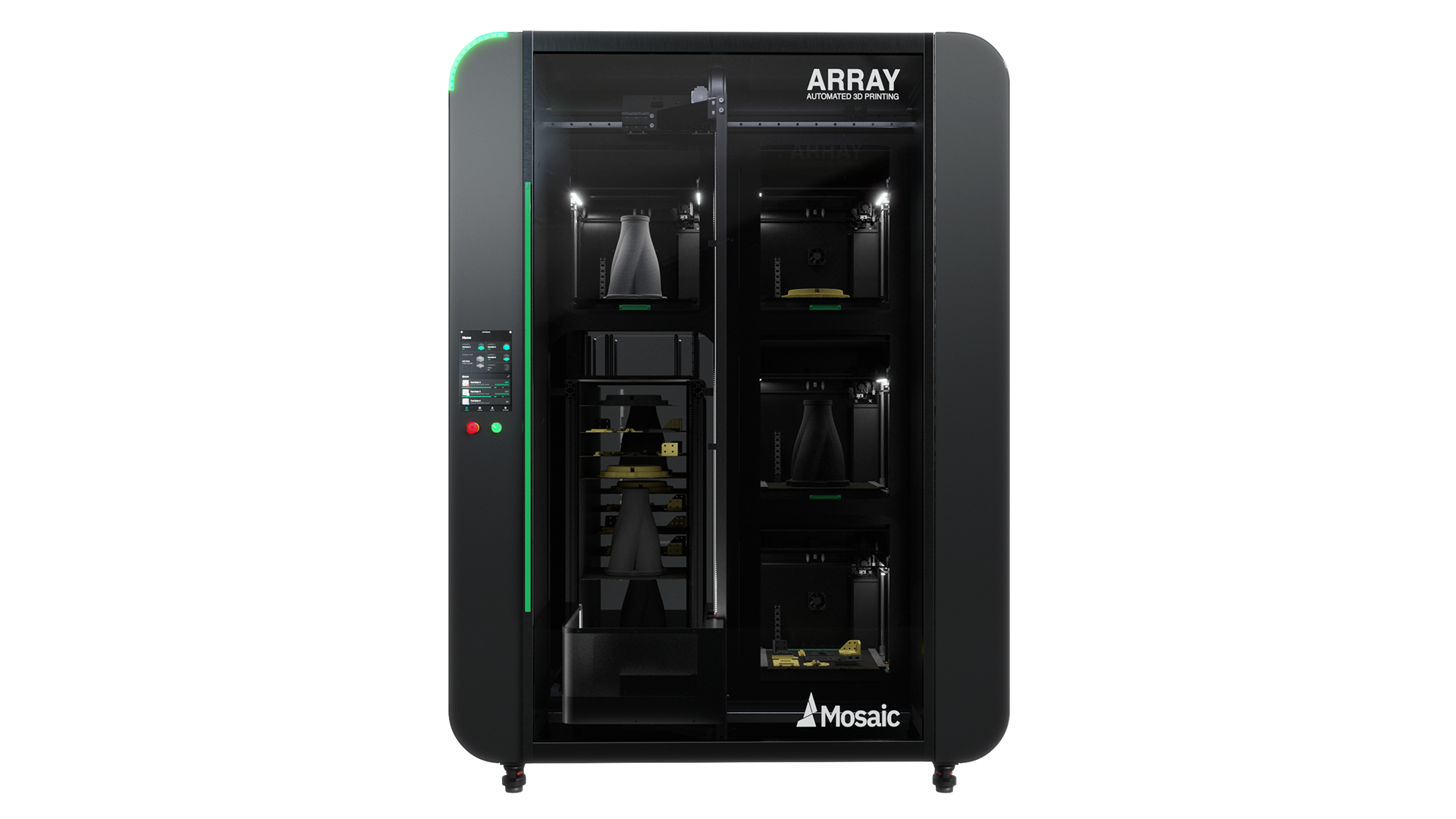

Array is a high-volume print system designed to bring 3D printing to the manufacturing floor. Array features 4 Element or Element HT 3D printers, and is built with an integrated robotics system for automated bed changing, material handling, and remote file management. Array supports a wide variety of print materials including ABS, CF Nylon, PETG, PEEK, PEKK, and Ultem 9085.

Build Volume: 4 Modules of 355mm x 355mm x 355mm (14” x 14” x 14”)

Build Speed: 100mm/s

Construction: Durable All Metal Motion Systems, aluminum outer chassis

Thermal Chamber Heated: up to 80°C

Heated Bed Max: 120°C

Max Nozzle Temperature: 500°C

Available Print Materials: Mosaic PLA, Mosaic PETG, Mosaic Matrix, Mosaic Soluble M1, Mosaic ABS, Mosaic Breakaway, Mosaic PEEK, Mosaic PEKK, Mosaic Ultem 9085, Mosaic ESD

Element HT is an industrial grade high temperature FFF printer. With a hot-end temp of up to 500°C and a heated chamber, Element HT allows you to print high strength parts for the most demanding applications. The printer is able to support up to 8 materials in a single part to include rigid material, flexible materials, and soluble support material in your prints.

Build Volume: 355mm x 355mm x 355mm (14” x 14” x 14”)

Build Speed: 100mm/s

Construction: Durable all-metal motion systems

Thermal Chamber Heated: up to 80°C

Heated Bed Max: 120°C

Max Nozzle Temperature: 500°C

Available Print Materials: Mosaic PLA, Mosaic PETG, Mosaic Matrix, Mosaic Soluble M1, Mosaic ABS, Mosaic Breakaway, Mosaic PEEK, Mosaic PEKK, Mosaic Ultem 9085, Mosaic ESD

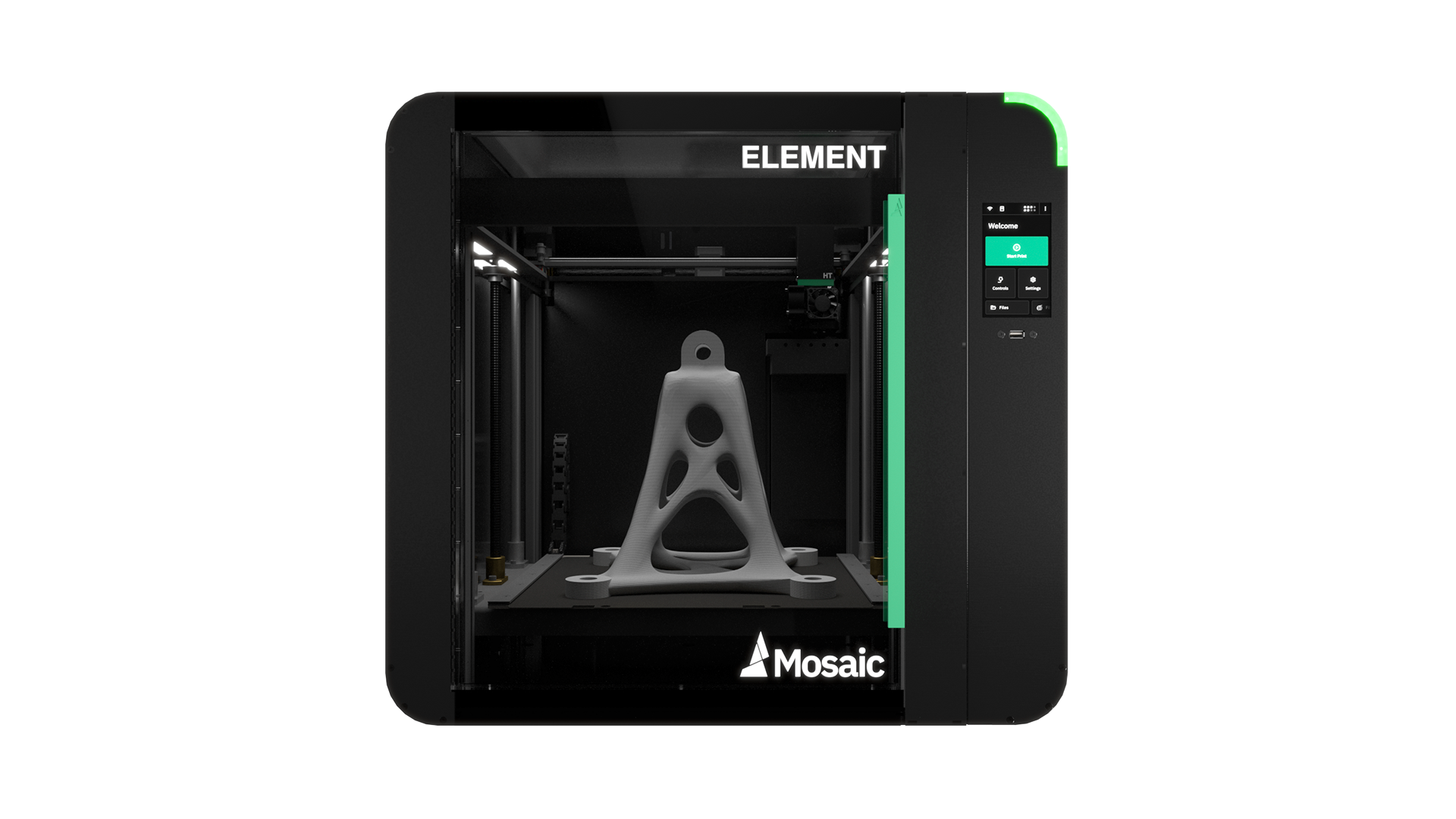

Element HT is an industrial grade FFF printer, enhanced with Mosaic's patented Series Enabled

Multi-Material Extrusion (SEME). Element is focused on creating high quality parts, with a simple user interface, and reliable operation. Element is able to support up to 8 materials in a single part to include rigid material, flexible materials, and soluble support material.

Build Volume: 355mm x 355mm x 355mm (14” x 14” x 14”)

Build Speed: 100mm/s

Construction: Durable all-metal motion systems

Heated Bed Max: 120°C

Max Nozzle Temperature: 300°C

Available Print Materials: Mosaic PLA, Mosaic PETG, Mosaic Matrix, Mosaic Dissolve LT, Mosaic ABS, Mosaic Breakaway LT. Mosaic ESD. Mosaic Flex
